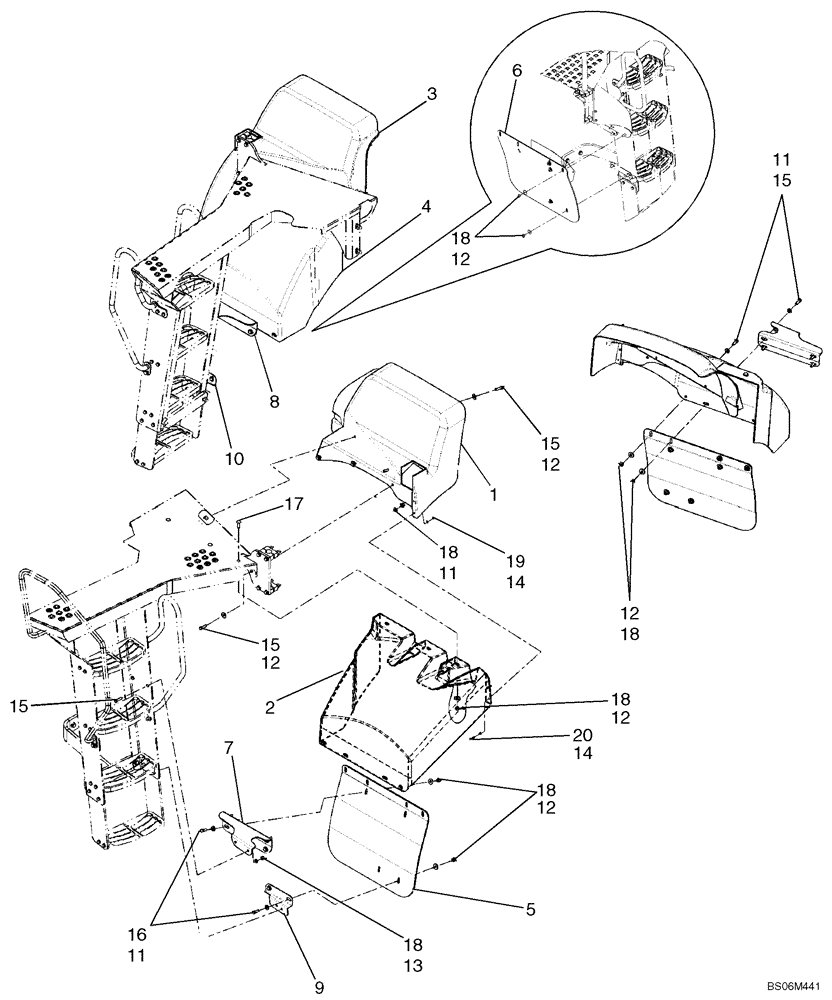

Запчасти Case 921E (09-35) - FENDERS, REAR - STANDARD (09) - CHASSIS

1

87552928

FENDER

LH Rear, Gray

1шт.

2

87552932

FENDER

LH Rear Mid, Gray

1шт.

3

87552930

FENDER

RH Rear, Gray

1шт.

4

87552934

FENDER

RH Rear Mid, Gray

1шт.

5

87547743

FLAP

LH Rear

1шт.

6

87603641

MUDFLAP

RH Rear

1шт.

7

87547745

BRACKET

LH Fender

1шт.

8

87547746

BRACKET

RH Fender

1шт.

9

87547747

BRACKET

LH Flap

1шт.

10

87547748

BRACKET

RH Flap

1шт.

11

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

24-30шт.

12

895-25010

WASHER,11mm ID x 30mm OD x 2.5mm Thk

24-30шт.

13

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

14

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

8шт.

15

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

12шт.

16

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

10шт.

17

811-10035

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 35mm, Cl 8.8

6шт.

18

832-10410

NUT,M10 x 1.5, Cl 8

36шт.

19

832-10406

NUT,M6 x 1, Cl 8

4шт.

20

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

4шт.
