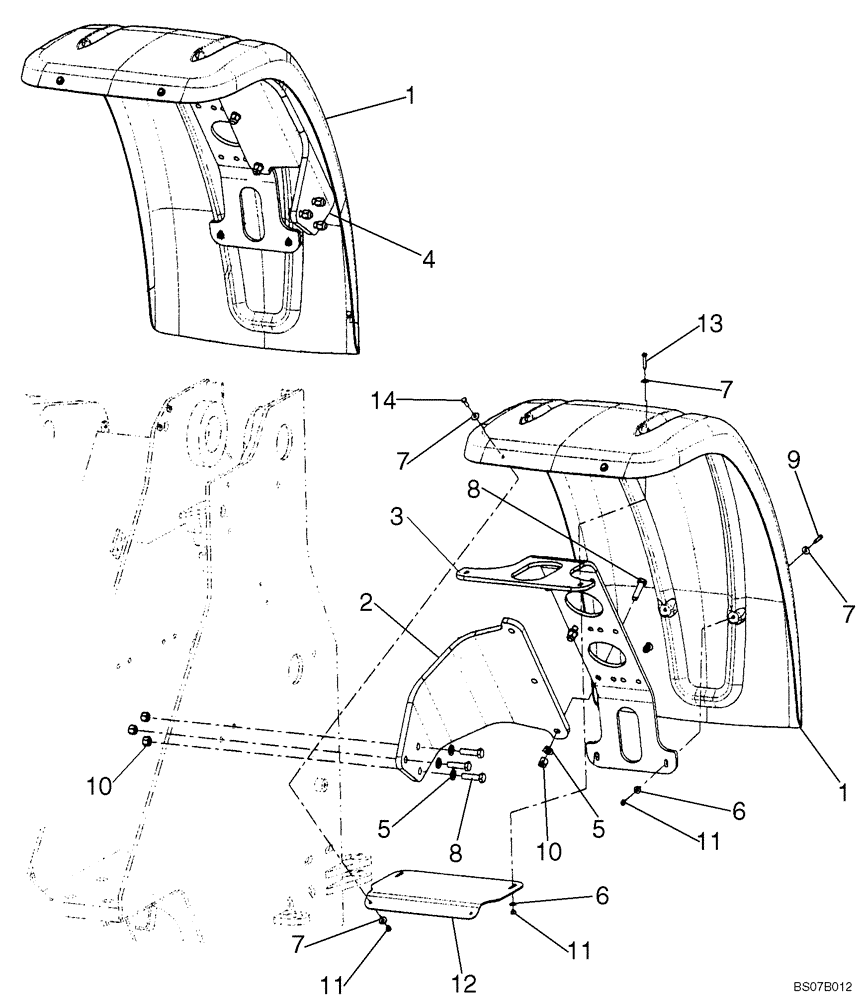

Запчасти Case 921E (09-33) - FENDERS, FRONT - PRIOR TO P.I.N. N8F203764 (09) - CHASSIS

REF

INSTRUCTION

Prior To P.I.N. N8F203764

1шт.

1

87610930

FRONT FENDER

2шт.

2

87576296

BRACKET

Fender; Wide; LH

1шт.

3

87576298

BRACKET

Fender

2шт.

4

87576297

BRACKET

Fender; Wide; RH

1шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

12шт.

6

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

If Used

8шт.

6

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

If Used

8шт.

7

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

16шт.

8

827-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

12шт.

9

627-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

4шт.

10

832-10416

NUT,M16 x 2, Cl 8

12шт.

11

832-10408

NUT,M8 x 1.25, Cl 8.8

12шт.

12

87621742

BRACKET

Front Fender

2шт.

13

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

4шт.

14

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.
