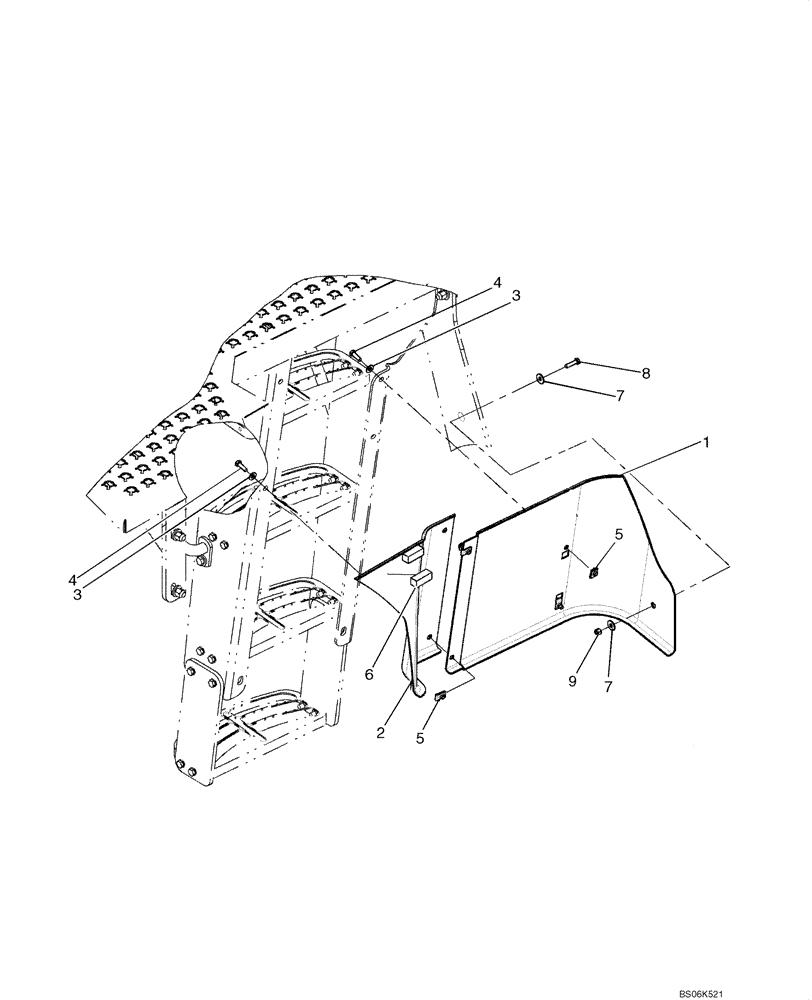

Запчасти Case 921E (09-32) - COVERS - HYDRAULICS (09) - CHASSIS

1

87551315

COVER

Front Hydraulics, Tan

1шт.

1

87555343

COVER

Front Hydraulics, Gray

1шт.

2

87551316

COVER

Rear Hydraulics, Tan

1шт.

2

87555344

COVER

Rear Hydraulics, Gray

1шт.

3

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

4

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

5

833-40408

NUT,M8, U

4шт.

6

L129961

SEALING STRIP

2шт.

7

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

2шт.

8

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

1шт.

9

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.
