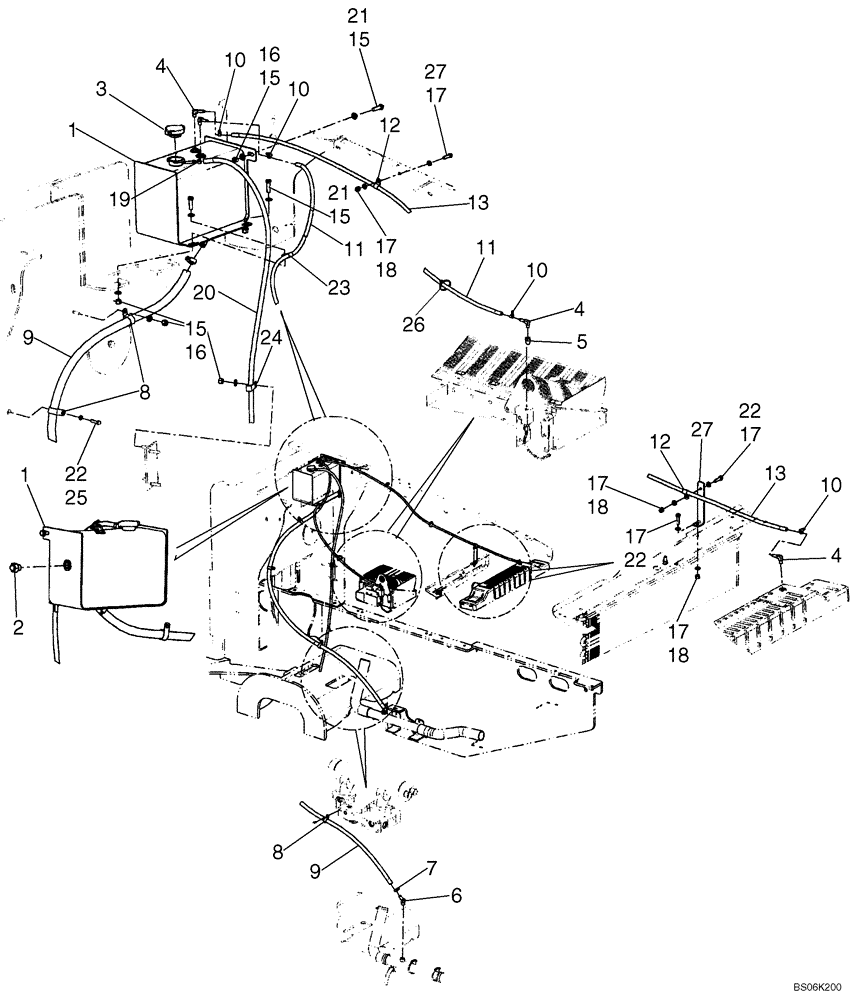

Запчасти Case 921E (02-09) - TANK, SURGE - MOUNTING AND CONNECTIONS (02) - ENGINE

1

87395920

TANK

Surge

1шт.

2

406721A1

GAUGE

1/2 PT; Sight

2шт.

3

A170241

RADIATOR CAP

1шт.

4

217-292

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

Use Loctite No. 592

4шт.

5

217-1034

REDUCER,1/4" - 18 Male NPTF x 1/8" - 27 Female NPTF

1шт.

6

217-145

ELBOW,45 Degree Elbow, 3/4" Hose Barb x 3/4" Male NPTF

1шт.

7

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

8

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

1шт.

9

87368231

HOSE,19.1mm ID x 2282.8mm L, SAE 30R2

Fill

1шт.

10

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

4шт.

11

87368232

HOSE,6.40 mm ID x 1410.00 mm

Engine Vent, Cut From 31-1182 Bulk

1шт.

12

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.

13

87368233

RADIATOR HOSE,6.40 mm ID x 2150.00 mm

HOSE Radiator Vent 2112mm ( 83 in ); Cut From 31-1182 Bulk

1шт.

14

248-2373

GROMMET,1/2" ID x 1 1/4" Groove Dia, Str Cut

Not Illustrated; Used on Radiator Vent Hose

1шт.

15

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

16

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

17

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

2шт.

18

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

19

A171099

HOSE CLAMP,13.2mm - 15.4mm

Hose

1шт.

20

87368234

HOSE,7.90 mm ID x 1210.00 mm

Overflow; Cut From 31-2855 Bulk

1шт.

21

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

3шт.

22

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

1шт.

23

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

24

31-1070

CLAMP,5/8", 3/8" Bolt, Double

1шт.

25

892-11008

LOCK WASHER,8mm ID

1шт.

26

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.

27

87558276

BRACKET

BRACKET

1шт.
