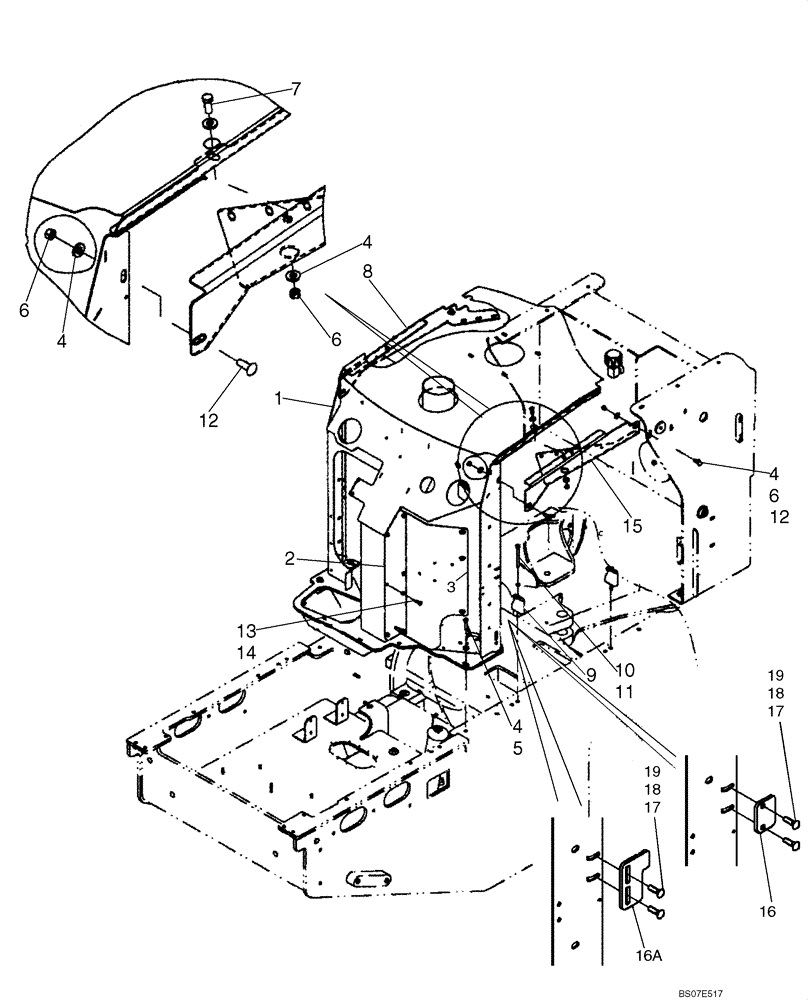

Запчасти Case 921E (09-23) - HOOD - ENGINE WALL (09) - CHASSIS

1

84191338

WALL

WALL, Engine; Replaces 87576290

1шт.

2

87395879

COVER

Mid Wall; Black

1шт.

3

87395880

COVER

Engine Wall; Black

1шт.

4

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

18шт.

5

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

6

829-1412

NUT,M12, Cl 10.9

6шт.

7

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.

8

87560960

PLATE

LH Hood; Replaces 87529149

1шт.

9

87383345

BLOCK

Pivot

4шт.

10

893-16012

LOCK WASHER,Ext Tooth, M12

4шт.

11

827-12120

BOLT,Hex, M12 x 1.75 x 120mm, Cl 10.9

4шт.

12

811-12035

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 35mm, Cl 8.8

1шт.

13

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

9шт.

14

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

9шт.

15

87560959

PLATE

RH Hood

1шт.

16

429986A1

PLATE

Door Latch; If Used

2шт.

16a

87642068

PLATE

Door Latch; If Used

2шт.

17

811-8030

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 30mm, Cl 8.8

4шт.

18

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

19

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.
