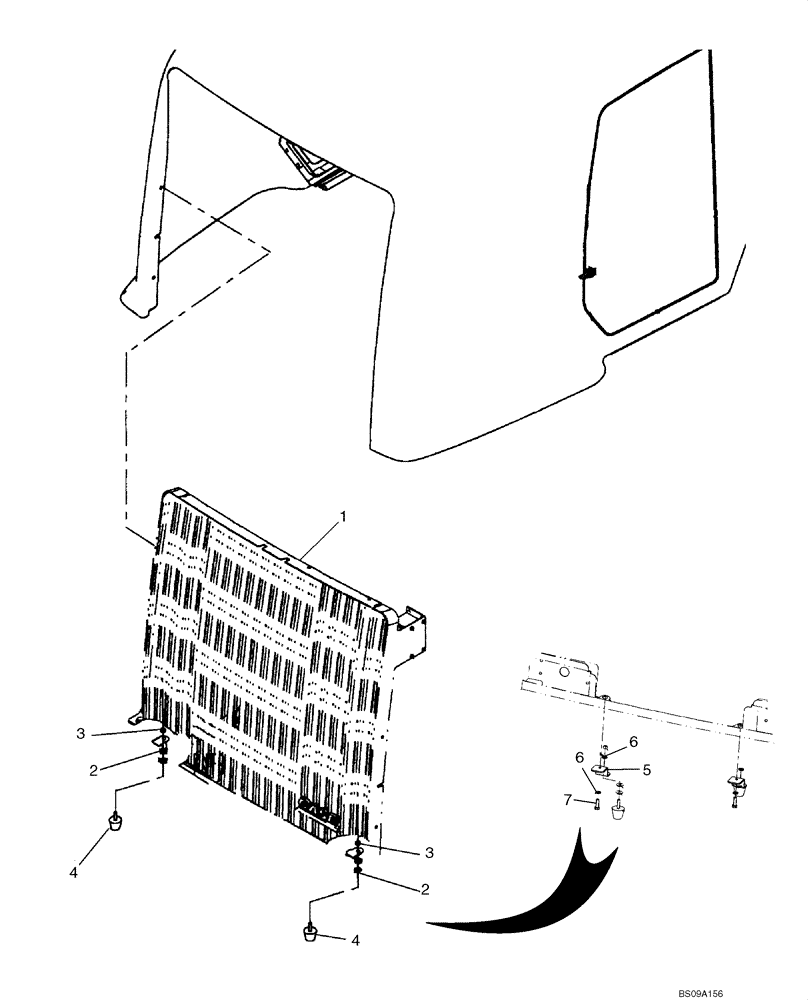

Запчасти Case 921E (09-21) - HOOD - GRILLE (09) - CHASSIS

1

87395911

GRILLE ASSY

Rear; North America Only; Mounts to Hood W/ Side Bolts; See Figure 04-19

1шт.

1

87647675

GRILLE

ASSY, Rear; North America Only; Mounts to Hood W/ Side Bolts and Top Brackets; See Figure 04-19A

1шт.

1

87395897

GRILLE ASSY

Rear; Europe Only; Mounts to Hood W/ Side Bolts; See Figure 04-19B

1шт.

1

87647676

GRILLE

ASSY, Rear; Europe Only; Mounts to Hood W/ Side Bolts and Top Brackets; See Figure 04-19C

1шт.

2

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

3

425-105

NUT,5/16"-18, G5

2шт.

4

87109195

BUMPER,5/16" - 18, 38mm OD

2шт.

5

84139068

BRACKET

Hood Support; Models With Heavy Duty and 450KG Coutnerweight

2шт.

6

492-11031

LOCK WASHER,5/16"

4шт.

7

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.
