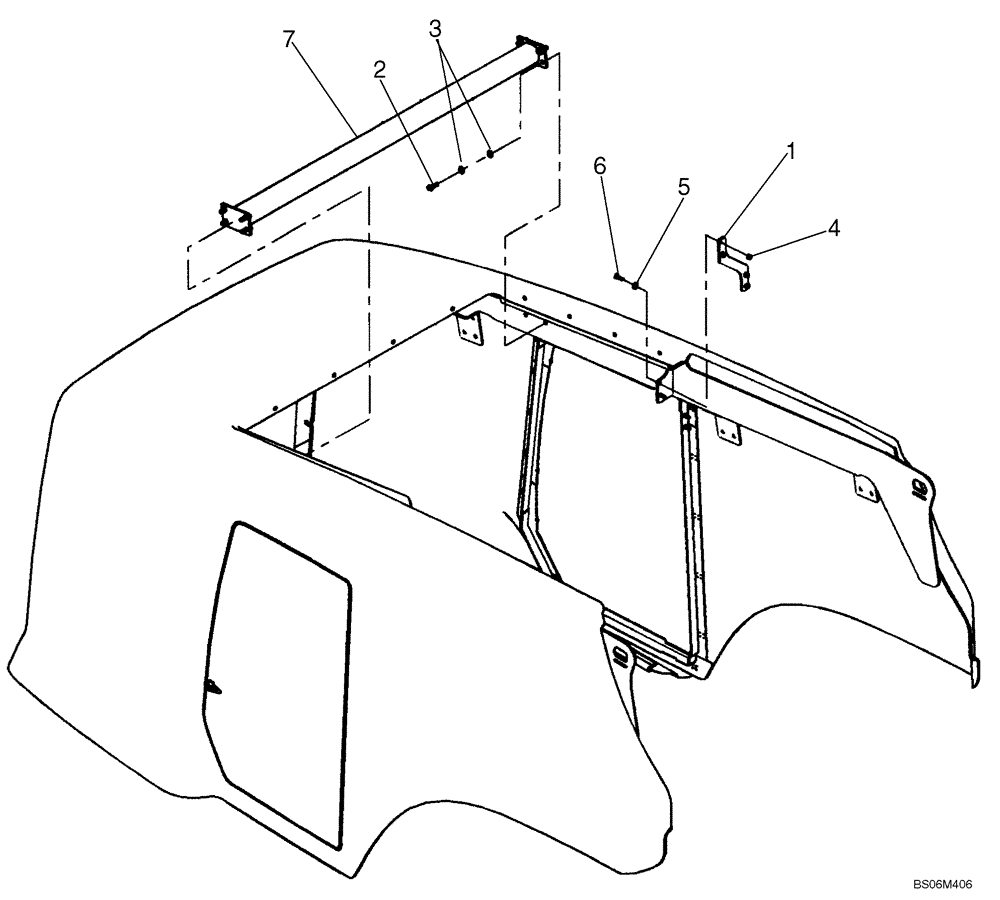

Запчасти Case 921E (09-19) - HOOD - COVER (09) - CHASSIS

87531208

HOOD

Incl. Refs. 1 - 7, Includes Parts on Figure 09-20; North America Only

1шт.

87572475

HOOD

Incl. Refs. 1 - 7; Includes Parts on Figure 09-20; Europe Only

1шт.

1

87573692

GUSSET

Hood Screen Frame

2шт.

2

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

8шт.

3

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

16шт.

4

832-10406

NUT,M6 x 1, Cl 8

8шт.

5

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

8шт.

6

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

8шт.

7

87566024

SUPPORT TUBE

TUBE

1шт.
