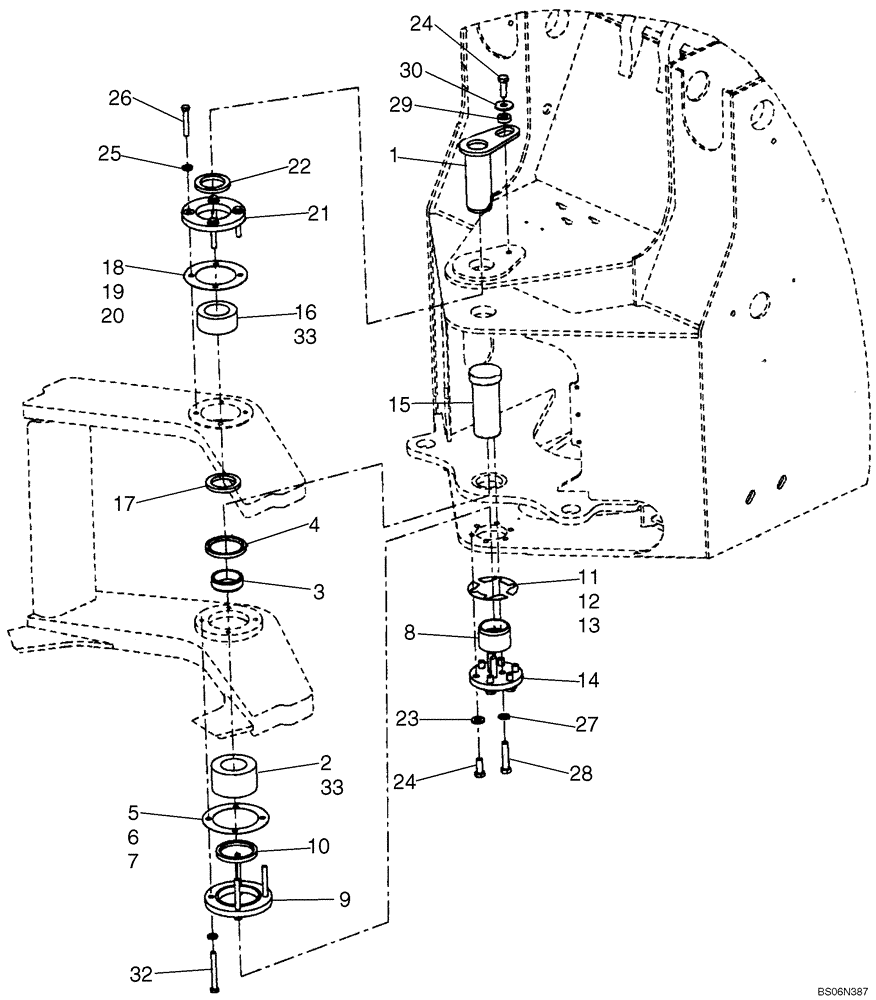

Запчасти Case 921E (09-17) - ARTICULATION JOINT (09) - CHASSIS

1

87354951

PIN,85.71mm OD x 244.7mm L

Upper Articulation

1шт.

2

L127971

TAPERED BEARING,89.99mm ID x 154.99mm OD x 88mm W

Lower Pivot

1шт.

3

87737533

SPACER

Lower Bearing; Replaces L130013, 87623440

1шт.

4

L127991

SEAL,107.95mm ID x 139.85mm OD x 12.7mm Thk

Lower Pivot

1шт.

5

L128233

SHIM,156.4mm ID x 228mm OD x 0.5mm Thk

1шт.

6

L128234

SHIM

1шт.

7

L128235

SHIM

1шт.

8

87623441

SPACER,90.04mm ID x 107.92mm OD x 75.53mm L

Replaces L130014

1шт.

9

87355320

CAP

Lower Seal

1шт.

10

L127990

SEAL,107.95mm ID x 189.85mm OD x 14.27mm Thk

Lower Pivot

1шт.

11

87354946

SHIM

.1 mm

1шт.

12

87355440

SHIM

.25 mm

1шт.

13

87355438

SHIM

.5 mm

1шт.

14

87356111

PLATE

Pin Retainer

1шт.

15

87354945

PIN,89.98mm OD x 243.8mm L

Lower Pivot

1шт.

16

L127970

TAPERED BEARING,85.72mm ID x 136.53mm OD x 60.33mm W

Lower Pivot

1шт.

17

L127988

SEAL,85.73mm ID x 119.2mm OD x 12.7mm Thk

Lower Pivot

1шт.

18

L128236

SHIM

1шт.

19

L128237

SHIM

1шт.

20

L128240

SHIM,138.5mm ID x 218mm OD x 0.1mm Thk

1шт.

21

87354952

RETAINER

Upper Pivot

1шт.

22

L127989

SEAL,85.73mm ID x 120.8mm OD x 12.7mm Thk

Lower Pivot

1шт.

23

896-15020

WASHER,22mm ID x 44mm OD x 5mm Thk

6шт.

24

627-20050

BOLT,Hex, M20 x 2.5 x 50mm, Cl 10.9, Full Thd

6шт.

25

896-15020

WASHER,22mm ID x 44mm OD x 5mm Thk

8шт.

26

827-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 10.9

4шт.

27

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

3шт.

28

827-20100

BOLT,Hex, M20 x 2.5 x 100mm, Cl 10.9

3шт.

29

L127846

SPACER,22.2mm ID x 44.45mm OD x 14.3mm L

Linkage Pins

1шт.

30

87355604

WASHER

Hardened

1шт.

31

627-20060

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

1шт.

32

827-16140

BOLT,Hex, M16 x 2 x 140mm, Cl 10.9

4шт.

33

331-329

GREASE

1 Ounce Wheel Bearing Grease

1шт.
