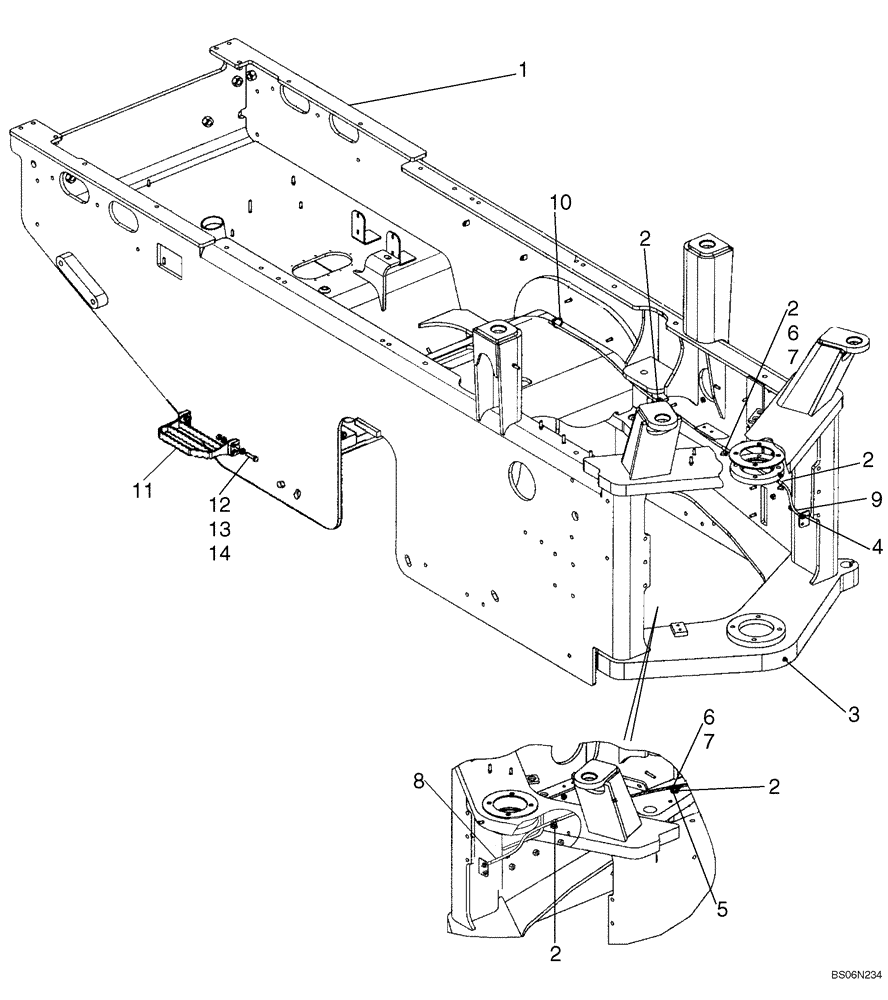

Запчасти Case 921E (09-16) - FRAME, REAR (09) - CHASSIS

1

87482724

CHASSIS

Rear, Incl. Fuel Tank; Replaces 87381663

1шт.

2

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

5шт.

3

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.

4

F53473

LOCK NUT,1/8-27 NPSM

Hex

2шт.

5

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

1шт.

6

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

3шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

8

310609A1

HOSE ASSY.

1642 mm (64-5/8 in) Grease; If Used

1шт.

8

318012A1

FLEXIBLE HOSE

1785 mm (70 - 1/4 in) Grease; If Used

1шт.

9

310610A1

HOSE ASSY.

2413 mm (95 in) Grease

1шт.

10

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Tie

1шт.

11

87617391

STEP

Rear

2шт.

12

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

8шт.

13

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

16шт.

14

829-1412

NUT,M12, Cl 10.9

If Used

8шт.

14

832-10412

NUT,M12 x 1.75, Cl 8

If Used

8шт.

15

221-35

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

Fuel Tank, Not Shown

1шт.
