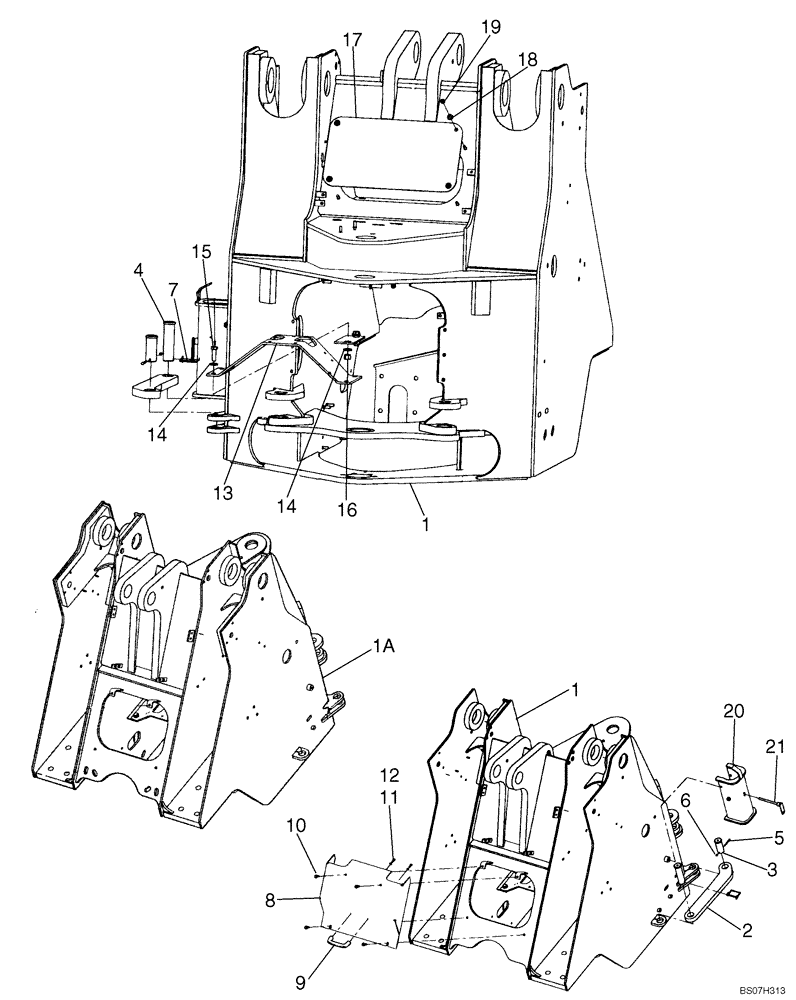

Запчасти Case 921E (09-15) - FRAME, FRONT (09) - CHASSIS

1

87335695

FRAME

FRAME, Front Chassis; No Longer Available, Order 87687154 Frame, Ref. 1A

1шт.

1a

87687154

FRAME

Front Chassis; W/ Thickened Upper Segment For Square Light Bracket Mounting (See Figure 04-18A)

1шт.

2

L129248

BAR

Articulation Lock

1шт.

3

353272A1

PIN

Articulation Lock

2шт.

4

87348198

PIN

Articulation Lock

1шт.

5

827-6060

BOLT,Hex, M6 x 60mm, Cl 10.9

1шт.

6

832-10406

NUT,M6 x 1, Cl 8

1шт.

7

L129282

LINCH PIN

1шт.

8

L130045

COVER

Front Hydraulic

1шт.

9

87351706

HANDLE

Mounting

1шт.

10

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

4шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

12

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

13

87348241

PLATE

Loader Valve

1шт.

14

896-16016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

8шт.

15

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

4шт.

16

832-10416

NUT,M16 x 2, Cl 8

4шт.

17

87375230

COVER

Front

1шт.

18

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

19

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

20

87544685

CHANNEL

Accumulator

1шт.

21

87571643

HANDLE

1шт.
