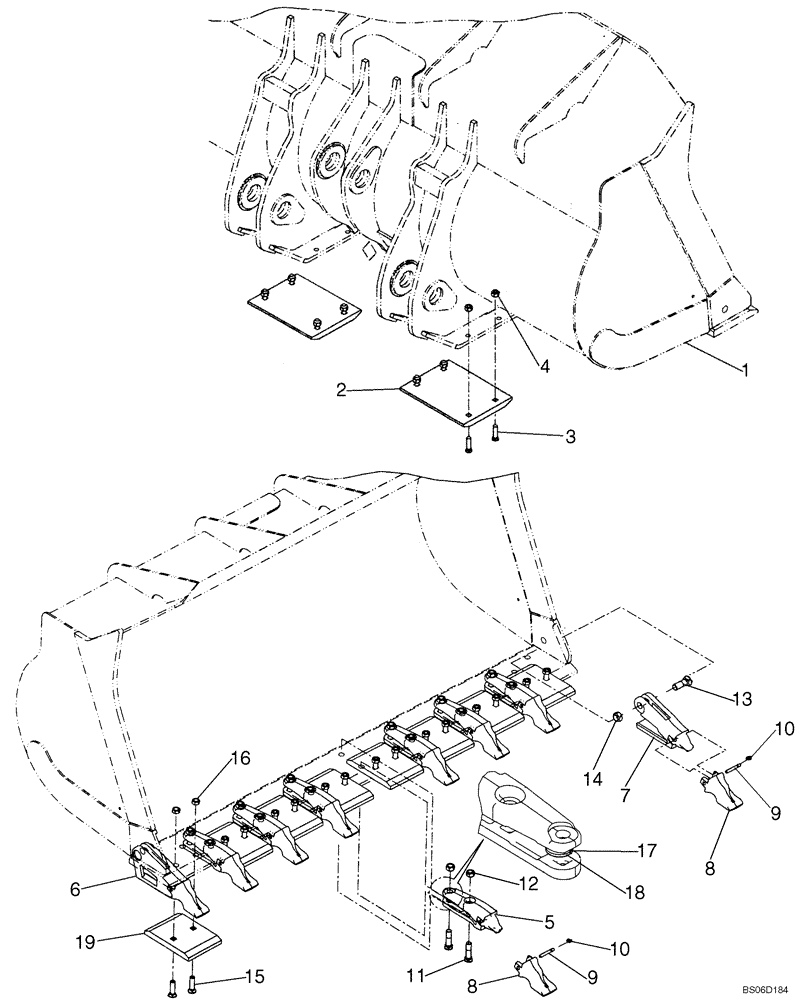

Запчасти Case 921E (09-14) - LOADER BUCKET - WITH TEETH, SEGMENTS AND SKID PADS - EUROPE (09) - CHASSIS

REF

INSTRUCTION

EUROPEAN MODELS ONLY

1шт.

1

87527927

BUCKET

4.0 Cubic Meter ( 5.25 Cubic Yard ); Order From Whole Goods; Incl. Refs. 2-19

1шт.

1

87527925

BUCKET

4.6 Cubic Meter ( 6.0 Cubic Yard ); Order From Whole Goods; Incl. Refs. 2 - 18, 20

1шт.

REF

INSTRUCTION

BOLT ON SKID PAD

1шт.

2

87527923

SKID PLATE

Bolt On

2шт.

3

420-21248

PLOW BOLT,#3, 3/4" - 10 x 3", Gr 8

8шт.

4

425-1612

NUT,3/4"-10, G5, Hvy

8шт.

REF

INSTRUCTION

BUCKET TEETH AND CUTTING EDGE SEGMENTS

1шт.

5

76053165

BUCKET TOOTH

Center

7шт.

6

76053166

BODY

RH Side Tooth

1шт.

7

76053164

BODY

LH Side Tooth

1шт.

8

76053167

BUCKET TOOTH POINT

9шт.

9

71465124

ROLL PIN,14mm OD x 100mm L

9шт.

10

71465125

RING

9шт.

11

76005145

BOLT,Plow, M27 x 2 x 110mm, Cl 10.9

M27

14шт.

12

79050076

NUT

M27

14шт.

13

79070400

PLOW BOLT,Spcl, M33 x 2 x 100mm, Cl 10.9

2шт.

14

79070401

NUT

2шт.

15

79048375

PLOW BOLT,Plow, M24 x 2 x 92mm, Cl 10.9

Plow #3

16шт.

16

12164521

NUT,Hex, M24, 2mm Pitch,19mm High, Cl 10

16шт.

17

76019883

SHIM,28mm ID x 55mm OD x 0.5mm Thk

1шт.

18

76019884

SHIM,28mm ID x 55mm OD x 1mm Thk

1шт.

REF

INSTRUCTION

SKID PADS

1шт.

19

87527913

SKID PLATE

SKID PADS

8шт.
