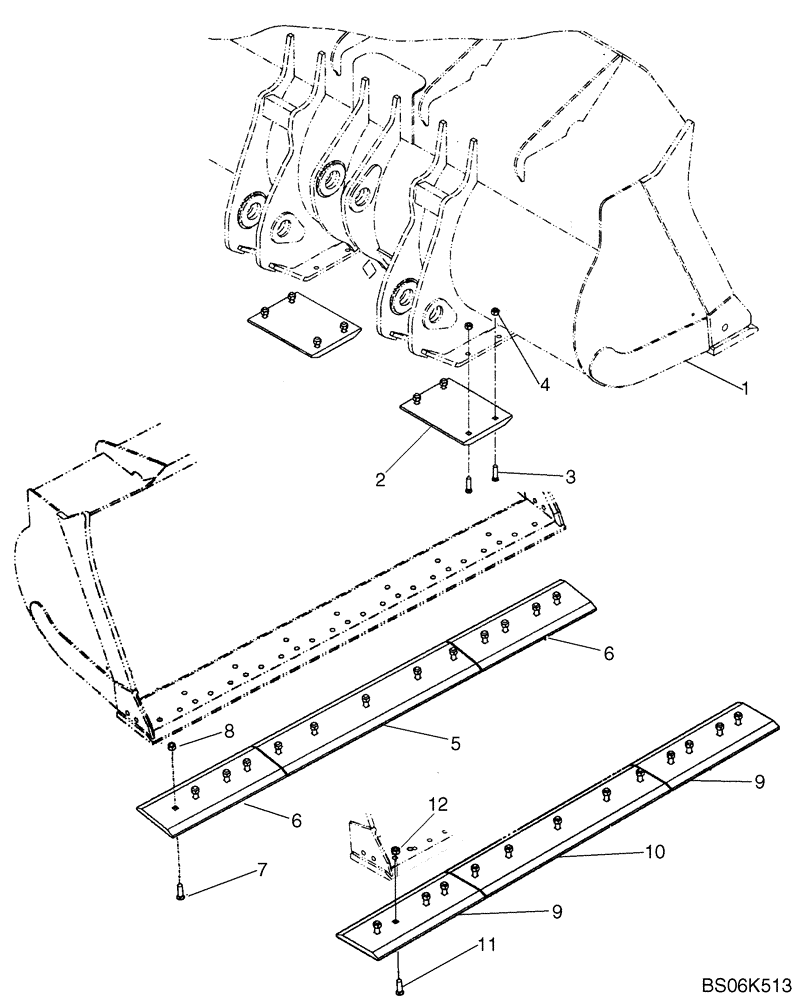

Запчасти Case 921E (09-13) - LOADER BUCKET - WITH BOLT ON EDGE AND SKID PADS - EUROPE (09) - CHASSIS

REF

INSTRUCTION

EUROPEAN MODELS ONLY

1шт.

1

87527926

BUCKET

4.0 Cubic Meter (5.25 Cubic Yard ); Order From Whole Goods; Inc. Refs. 2 - 8

1шт.

1

87527924

BUCKET

4.6 Cubic Meter (6.0 Cubic Yard ); Order From Whole Goods; Inc. Refs. 2 - 4, 9 - 12

1шт.

REF

INSTRUCTION

BOLT ON SKID PAD

1шт.

2

87527923

SKID PLATE

Bolt On

2шт.

3

420-21240

CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/2", Gr 8

8шт.

4

425-1612

NUT,3/4"-10, G5, Hvy

8шт.

REF

INSTRUCTION

BOLT ON CUTTING EDGES, 4.0 CUBIC METER BUCKET

1шт.

5

76034788

CUTTING EDGE

Center; Bolt On

1шт.

6

87585523

CUTTING EDGE

Outer; Bolt On

2шт.

7

79048375

PLOW BOLT,Plow, M24 x 2 x 92mm, Cl 10.9

M24 x 9

13шт.

8

12164521

NUT,Hex, M24, 2mm Pitch,19mm High, Cl 10

13шт.

REF

INSTRUCTION

BOLT ON CUTTING EDGES, 4.6 CUBIC METER BUCKET

1шт.

9

87585524

CUTTING EDGE

Outer; Bolt On

2шт.

10

76034790

CUTTING EDGE

Center; Bolt On

1шт.

11

79048375

PLOW BOLT,Plow, M24 x 2 x 92mm, Cl 10.9

M24 x 9

13шт.

12

12164521

NUT,Hex, M24, 2mm Pitch,19mm High, Cl 10

13шт.
