(09-12) - LOADER BUCKET - WITH TEETH, SEGMENTS AND SKID PADS - 5.0 CU YD

Запчасти Case 921E (09-12) - LOADER BUCKET - WITH TEETH, SEGMENTS AND SKID PADS - 5.0 CU YD (09) - CHASSIS

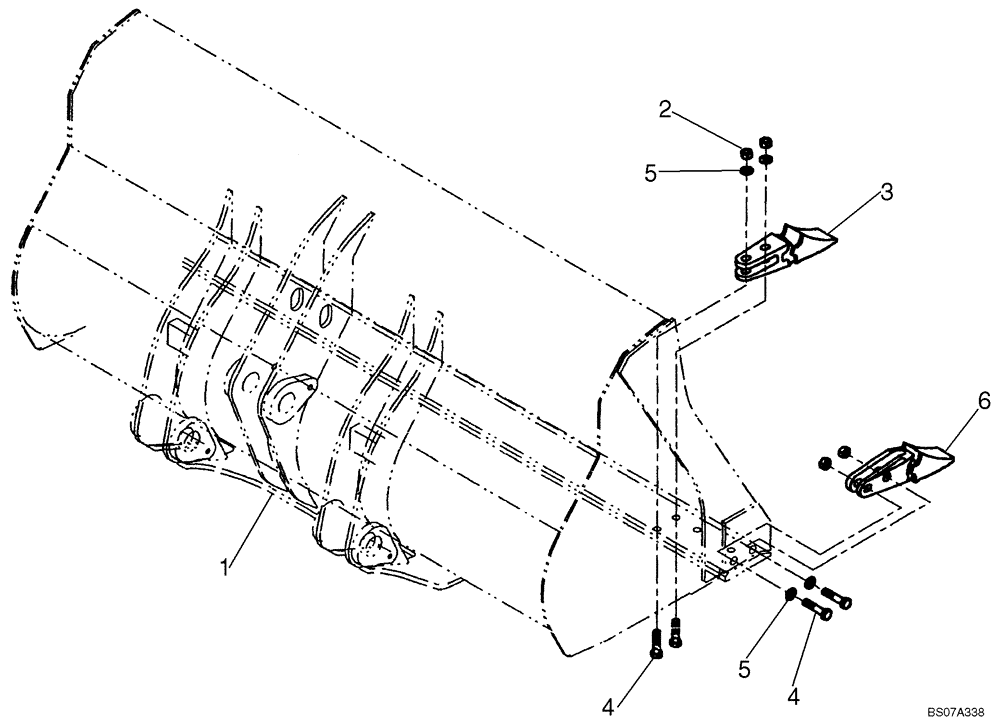

Схема запчастей Case 921E - (09-12) - LOADER BUCKET - WITH TEETH, SEGMENTS AND SKID PADS - 5.0 CU YD (09) - CHASSIS
1
5
5
3
2
4
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

BUCKET ASSY, 429402A1; 5.0 Cubic Yard ( 3.8 Cubic Meter ); Order From Whole Goods; Incl. Refs. 2 - 6

1шт.

REF

INSTRUCTION

BUCKET TEETH SEGMENTS

1шт.

2

329-1016

NUT,1"-8, G8

16шт.

3

254608A1

TEETH

Center

6шт.

4

326-1664

BOLT,Hex, 1" - 8 x 4", Gr 8

16шт.

5

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

Hardened

16шт.

6

254612A1

TEETH

Corner

2шт.
