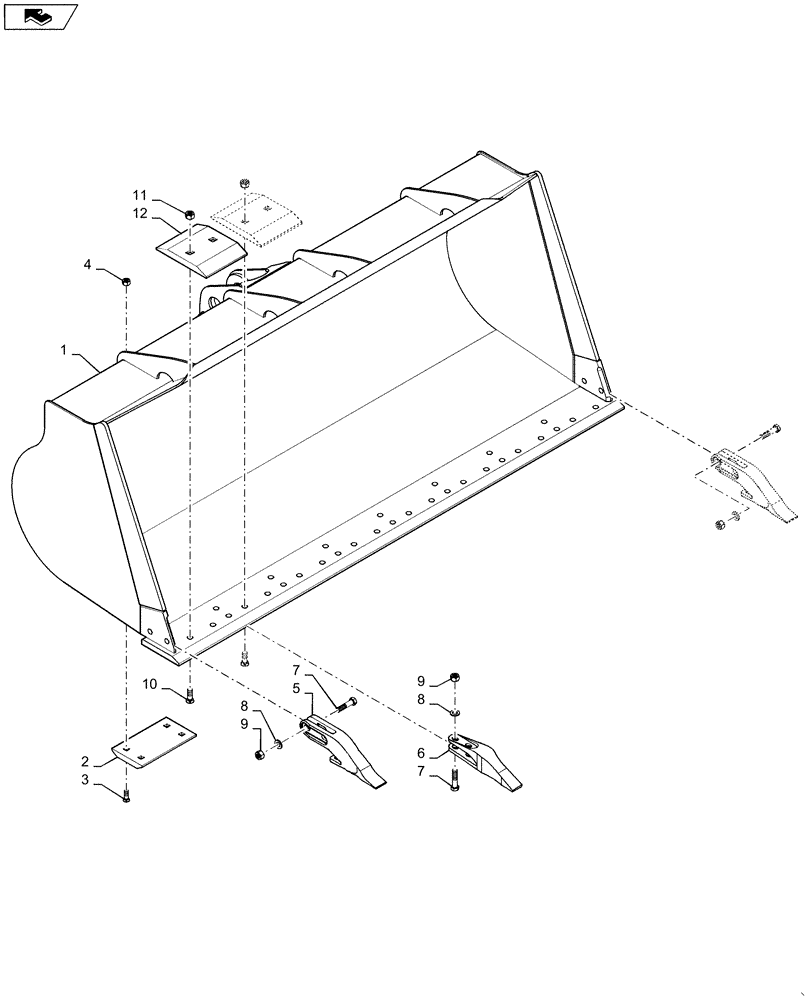

Запчасти Case 921E (09-11) - LOADER BUCKET - WITH TEETH, SEGMENTS AND SKID PADS (09) - CHASSIS

1

REF

INSTRUCTION

BUCKET ASSY, 87527908; 5.25 Cubic Yard ( 4.0 Cubic Meter ); Order From Whole Goods; Incl. Refs. 2 - 12

1шт.

1

REF

INSTRUCTION

BUCKET ASSY, 87522903; 5.75 Cubic Yard (4.4 Cubic Meter ); Order From Whole Goods; Incl. Refs. 2 - 12

1шт.

REF

INSTRUCTION

BOLT ON SKID PAD

1шт.

2

87527928

SKID PLATE

Bolt On

2шт.

3

420-21248

PLOW BOLT,#3, 3/4" - 10 x 3", Gr 8

8шт.

4

425-1612

NUT,3/4"-10, G5, Hvy

8шт.

REF

INSTRUCTION

BUCKET TEETH AND CUTTING EDGE SEGMENTS

1шт.

5

87527917

BUCKET TOOTH

Corner

2шт.

6

87527918

BUCKET TOOTH

Center

7шт.

7

426-1664

BOLT,Hex, 1" - 8 x 4", Gr 8

18шт.

8

496-21106

WASHER,1 1/16" x 2" x .209", HDN

18шт.

9

429-1016

NUT,1"-8, G8

18шт.

10

L125966

PLOW BOLT,#3, Dome Hd, 1" - 8 x 3.50", Gr 8

16шт.

11

329-1016

NUT,1"-8, G8

16шт.

12

87527913

SKID PLATE

8шт.
