(09-10) - LOADER BUCKET - WITH BOLT ON EDGE AND SKID PADS - 5.0 CU YDS

Запчасти Case 921E (09-10) - LOADER BUCKET - WITH BOLT ON EDGE AND SKID PADS - 5.0 CU YDS (09) - CHASSIS

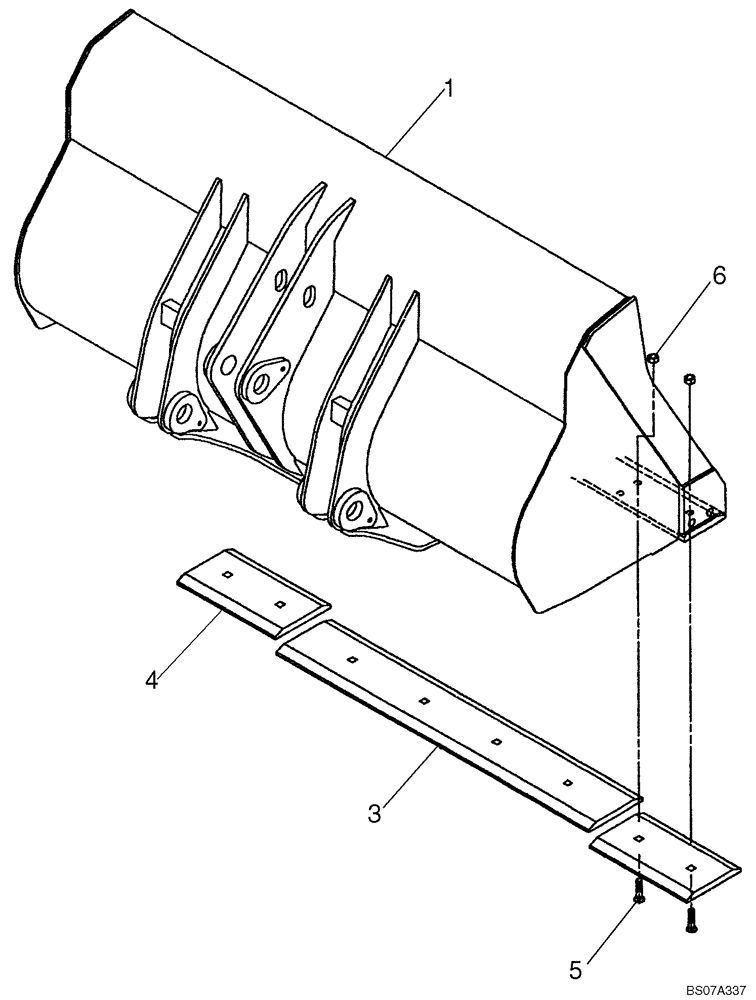

Схема запчастей Case 921E - (09-10) - LOADER BUCKET - WITH BOLT ON EDGE AND SKID PADS - 5.0 CU YDS (09) - CHASSIS
6
4
3
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

BUCKET ASSY, 429401A1; 5.0 Cubic Yard (3.8 Cubic Meter ); Incl. Refs. 2 - 6; Order From Whole Goods

1шт.

2

L129601

LARGE PLATE

PLATE, LARGE Not Illustrated

4шт.

REF

INSTRUCTION

BOLT ON CUTTING EDGES

1шт.

3

L128861

EDGE, CUTTING

1шт.

4

L128862

EDGE, CUTTING

2шт.

5

L125966

PLOW BOLT,#3, Dome Hd, 1" - 8 x 3.50", Gr 8

Dome Head Plow No. 3

8шт.

6

329-1016

NUT,1"-8, G8

8шт.
