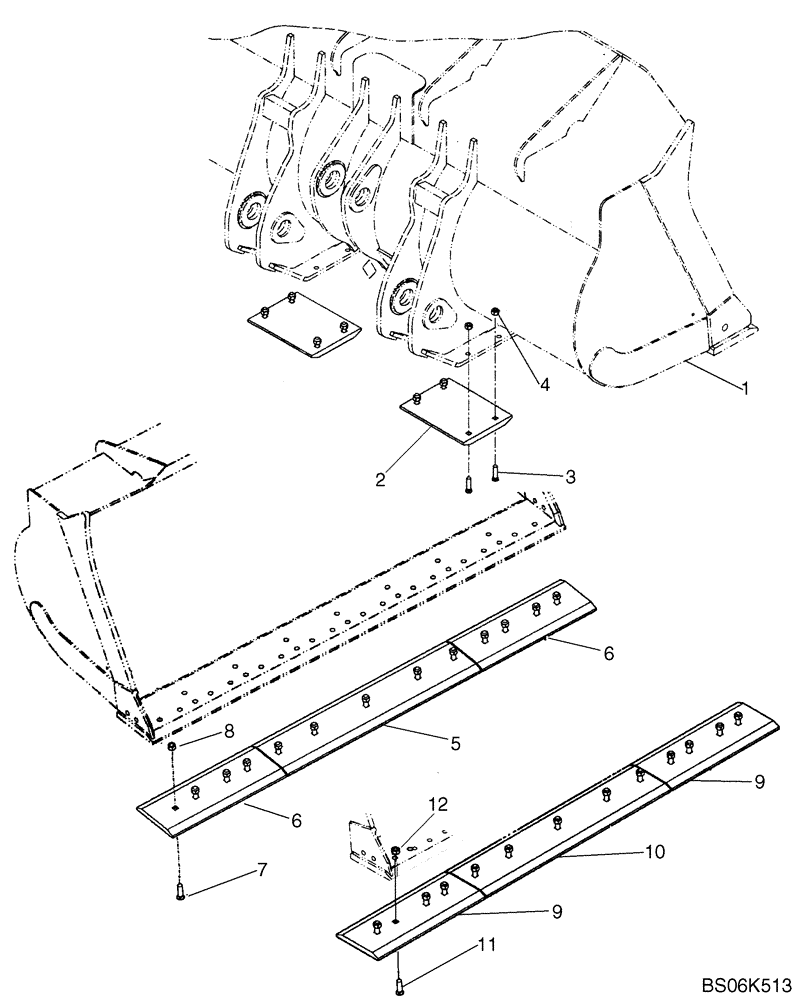

Запчасти Case 921E (09-09) - LOADER BUCKET - WITH BOLT ON EDGE AND SKID PADS (09) - CHASSIS

1

REF

INSTRUCTION

BUCKET ASSY, 87527907; 5.25 Cubic Yard (4.0 Cubic Meter ); Incl. Refs. 2 - 4, 5 - 8; Order From Whole Goods

1шт.

1

REF

INSTRUCTION

BUCKET ASSY, 87522902; 5.75 Cubic Yard (4.4 Cubic Meter ); Incl. Refs. 2 - 4, 9 - 12; Order From Whole Goods

1шт.

REF

INSTRUCTION

BOLT ON SKID PAD

1шт.

2

87527928

SKID PLATE

Bolt On

2шт.

3

420-21248

PLOW BOLT,#3, 3/4" - 10 x 3", Gr 8

8шт.

4

425-1612

NUT,3/4"-10, G5, Hvy

8шт.

REF

INSTRUCTION

BOLT ON CUTTING EDGES, 5.25 Cubic Yard Bucket

1шт.

5

87527919

SKID PLATE

Center; Bolt On

1шт.

6

87573984

CUTTING EDGE

Outer; Bolt On

2шт.

7

L125966

PLOW BOLT,#3, Dome Hd, 1" - 8 x 3.50", Gr 8

Plow Head; #3

13шт.

8

329-1016

NUT,1"-8, G8

13шт.

REF

INSTRUCTION

BOLT ON CUTTING EDGES, 5.75 Cubic Yard Bucket

1шт.

9

87573985

CUTTING EDGE

Outer; Bolt On

2шт.

10

87527914

SKID PLATE

Center; Bolt On

1шт.

11

L125966

PLOW BOLT,#3, Dome Hd, 1" - 8 x 3.50", Gr 8

Plow Head; #3

13шт.

12

329-1016

NUT,1"-8, G8

13шт.
