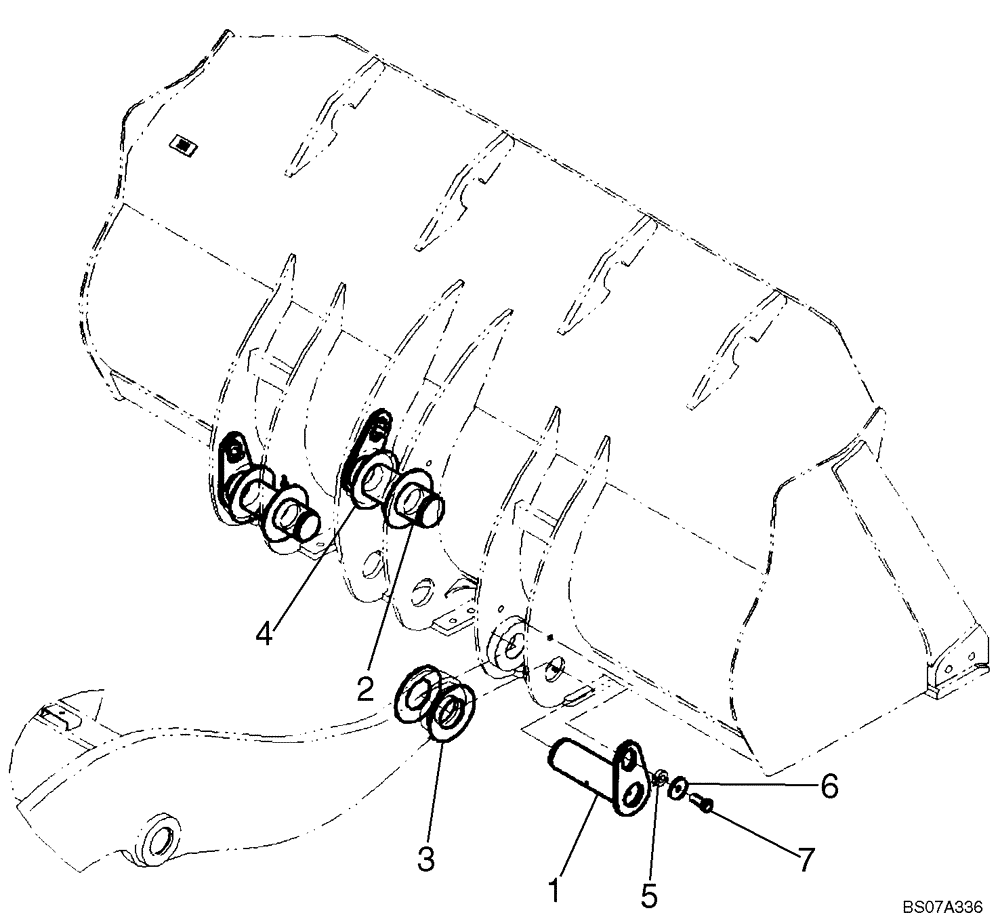

Запчасти Case 921E (09-08) - BUCKETS - ATTACHMENT - 5.0 CU YD (09) - CHASSIS

REF

INSTRUCTION

USED FOR 5.0 CU YD (3.8 CU METER) BUCKET, NORTH AMERICAN MODELS ONLY

1шт.

1

L127847

HEADED PIN,88.9mm OD x 287.7mm L

3.5 Inch

2шт.

2

L129897

PIN,95.25mm OD x 275mm L

3.75 Inch

1шт.

3

87642053

WASHER,91mm ID x 170mm OD x 3.5mm Thk

3.5 mm Thk, 91 mm ID; Replaces L128721 90 mm ID Washer Used on Some Models

4шт.

4

105917A1

WASHER,98mm ID x 176mm OD x 3.5mm Thk

Dump Link

2шт.

5

L127846

SPACER,22.2mm ID x 44.45mm OD x 14.3mm L

Linkage Pins

3шт.

6

NLS

NO LONGER SERVICED

Hardened

3шт.

7

426-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

3шт.
