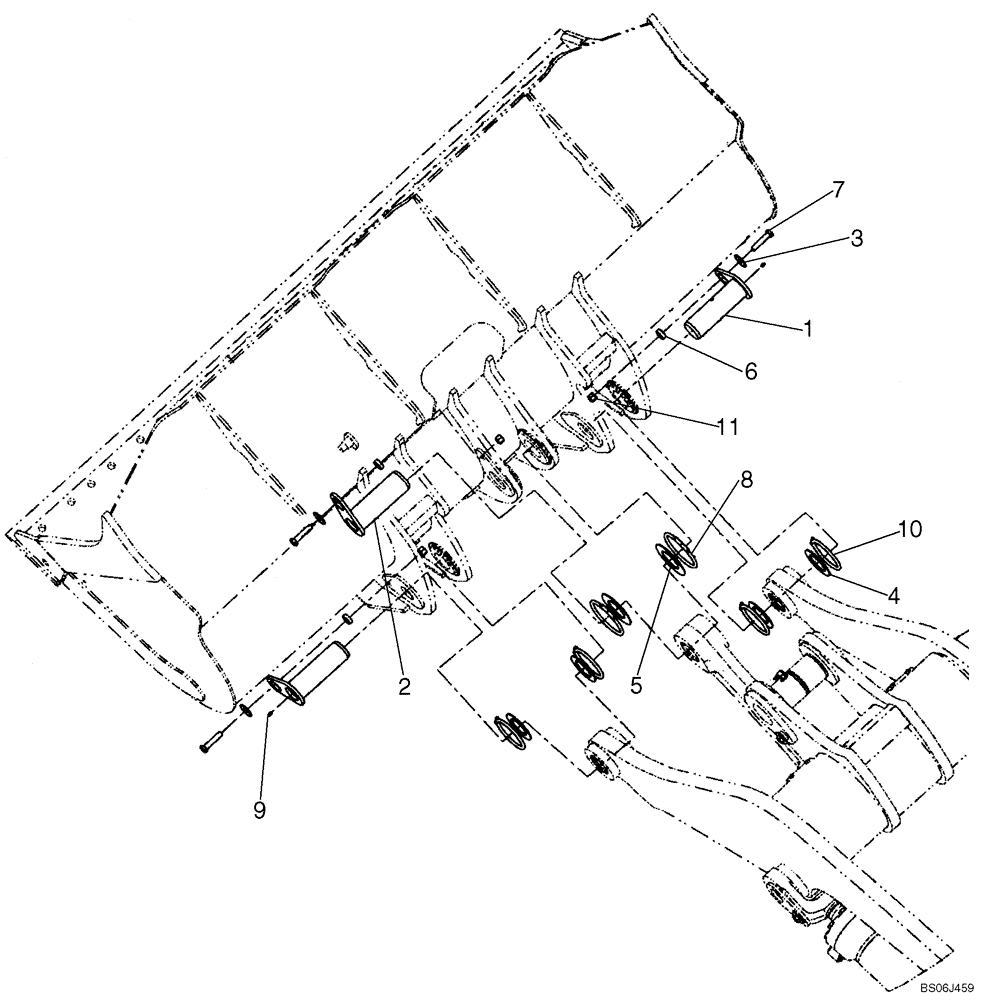

Запчасти Case 921E (09-07) - BUCKETS - ATTACHMENT (09) - CHASSIS

1

L127847

HEADED PIN,88.9mm OD x 287.7mm L

2шт.

2

L129897

PIN,95.25mm OD x 275mm L

1шт.

3

87355604

WASHER

3шт.

4

87527931

SHIM

4шт.

5

87527930

SHIM

2шт.

6

L127846

SPACER,22.2mm ID x 44.45mm OD x 14.3mm L

3шт.

7

827-20090

BOLT,Hex, M20 x 2.5 x 90mm, Cl 10.9

3шт.

8

87309174

O-RING,167mm ID

2шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

10

87362492

O-RING,140mm ID x 164mm OD x 12mm Thk

4шт.

11

832-10420

NUT,M20 x 2.5, Cl 8

3шт.
