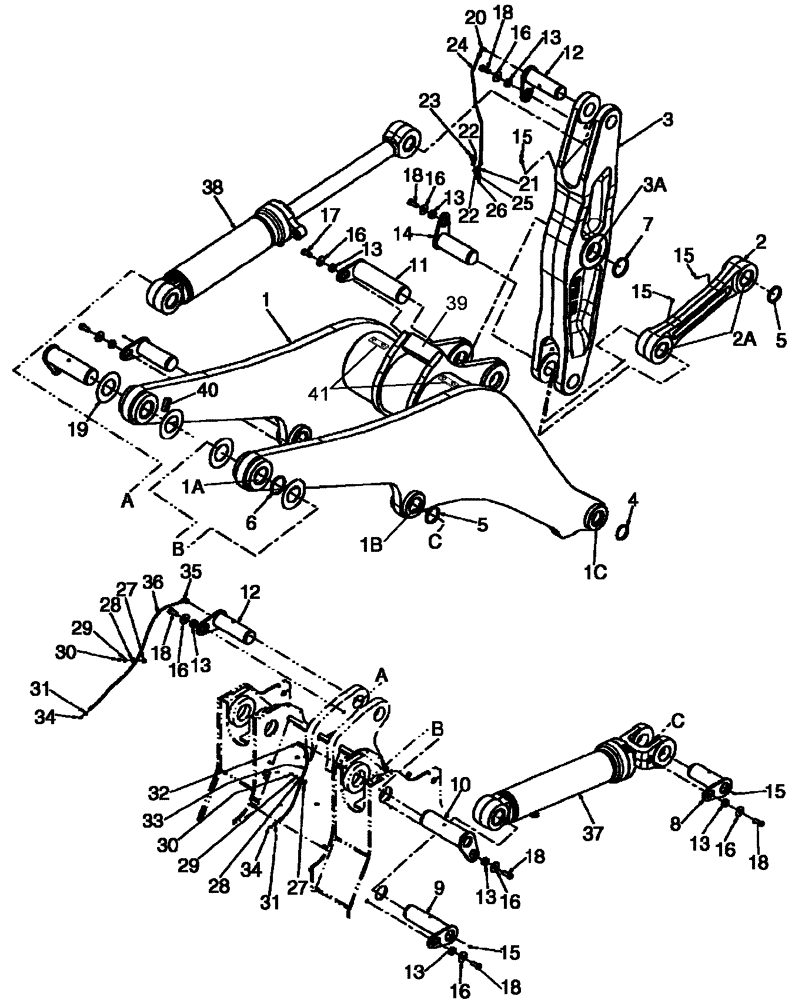

Запчасти Case 921E (09-06) - FRAME - LOADER LIFT (XR LOADER) (09) - CHASSIS

1

84232382

XR Loader; Incl. Refs. 1A - 1C; Replaces 87690750

1шт.

1a

87613425

BUSHING,108.24mm ID x 119.41mm OD x 125mm L

Lift Arm

2шт.

1b

87613424

BUSHING,95.5mm ID x 107.82mm OD x 114.5mm L

Lift Arm

2шт.

1c

87613421

BUSHING,89.18mm ID x 101.61mm OD x 114.5mm L

Lift Arm

2шт.

2

L129925

ROCKER ARM

Incl. Ref. 2A

1шт.

2a

87613422

BUSHING,95.5mm ID x 107.82mm OD x 114.5mm L

Rocker Arm

2шт.

3

87664597

BELLCRANK

Incl. Ref. 3A; Service Replacement For 87354522 Bellcrank

1шт.

3a

87613423

BUSHING,114.55mm ID x 127.01mm OD x 100mm L

Bellcrank

2шт.

4

1346341C1

WIPER SEAL,86.49mm ID x 101.73mm OD x 7.95mm Thk

Pin

4шт.

5

L128529

SEAL,95.2mm ID x 107.9mm OD x 8.3mm Thk

Pin; 3-3/4 in

8шт.

6

L128528

RING,108.03mm ID x 119.46mm OD x 8.3mm Thk

Pin; 4-1/4 in

4шт.

7

L128527

RING,111.43mm ID x 127.13mm OD x 7.95mm Thk

Pin; 4-1/2 in

2шт.

8

L128356

HANDLED SHAFT

3-3/4 in Dia.; Tan

2шт.

9

L127849

HANDLED SHAFT

3-3/4 in Dia.; Tan

2шт.

10

L127848

HANDLED SHAFT

4-1/4 in Dia.; Tan

2шт.

11

L128354

HANDLED SHAFT

4-1/2 in Dia.; Tan

1шт.

12

L127847

HEADED PIN,88.9mm OD x 287.7mm L

3-1/2 in Dia.; Tan

2шт.

13

L127846

SPACER,22.2mm ID x 44.45mm OD x 14.3mm L

Linkage Pin

10шт.

14

L129897

PIN,95.25mm OD x 275mm L

3-3/4 in Dia.; Tan

1шт.

15

219-1

LUBE NIPPLE,1/8" - 27 NPTF

7шт.

16

87355604

WASHER

Hardened

10шт.

87349604R

REMAN-HYD CYLINDER

921E TIER 3 ( 2/07 - )

10шт.

87349604C

CORE-HYD CYLINDER

Return Number

1шт.

17

627-20040

BOLT,Hex, M20 x 2.5 x 40mm, Cl 10.9, Full Thd

1шт.

18

627-20050

BOLT,Hex, M20 x 2.5 x 50mm, Cl 10.9, Full Thd

9шт.

19

L128823

WASHER

4шт.

20

218-1066

ELBOW,90 Degree, 7/16"-20, 37 Degree x 1/8"-27, NPTF, LG

1шт.

21

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

1шт.

22

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

23

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

24

L129909

TUBE,0.625" OD

Grease

1шт.

25

218-461

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Female NPTF

1шт.

26

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

27

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

3шт.

28

49832

CLAMP

3шт.

29

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.

30

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

31

F53473

LOCK NUT,1/8-27 NPSM

1/8 PT

3шт.

32

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

2шт.

33

L114211

HOSE,4.83mm ID x 549mm L

Lubrication

2шт.

34

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

3шт.

35

328082A1

ELBOW

90 deg.

1шт.

36

L54694

HOSE,4.8mm ID x 1041mm L

Grease; 1041 mm (41 in)

1шт.

37

87349604

CYLINDER ASSY.,Double Acting, 101.6mm Rod, 867.7mm Stroke

Loader Lift; See Figure 08-16

2шт.

38

87694735

HYDRAULIC CYLINDER,Double Acting, 101.6mm Rod, 745.3mm Stroke

ASSY., XR Bucket Tilt; See Figure 08-15A

1шт.

87694735R

REMAN-HYD CYLINDER

921E - WHEEL LOADER TIER 3 (NA/EU) (2/07-)

1шт.

87694735C

CORE-HYD CYLINDER

Return Number

1шт.

39

109358A1

Dump Stop

1шт.

40

87354464

Plate Mounting

1шт.

41

87327024

Clamp

2шт.
