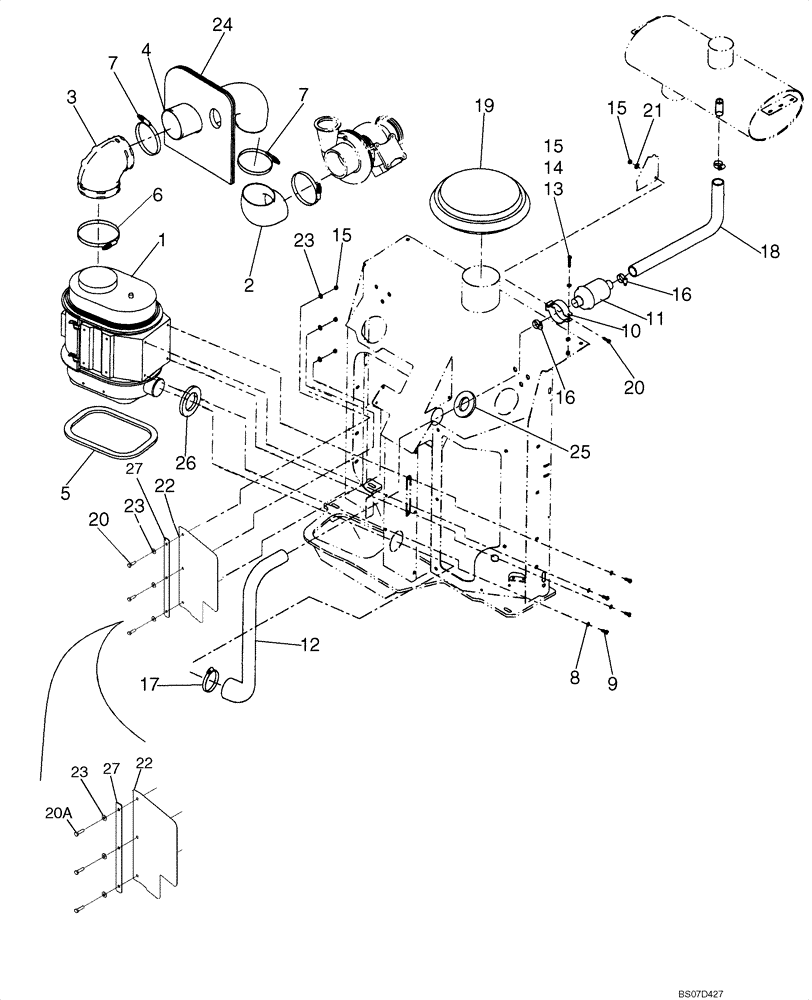

Запчасти Case 921E (02-08) - AIR CLEANER - AIR INTAKE PARTS (02) - ENGINE

1

87344298

AIR CLEANER

Powercore; 12in; See Figure 02-08A

1шт.

2

87370032

ELBOW

5 in Dia

1шт.

3

87418236

ELBOW

Reducing 6 to 7 in

1шт.

4

87368043

AIR INTAKE TUBE,5" OD

Air Intake

1шт.

5

87399719

GASKET

Air Cleaner

1шт.

6

L129160

CLAMP,158.75mm - 180.97mm

Constant Torque

1шт.

7

L129159

CLAMP,5-1/4" - 6-1/8", Worm Gear

Constant Torque

3шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

9

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

10

90-7639T1

CLAMP

1шт.

11

90-7640T1

VALVE

1шт.

12

87358286

HOSE

Molded; Aspirator

1шт.

13

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

2шт.

14

827-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

1шт.

15

832-10408

NUT,M8 x 1.25, Cl 8.8

5шт.

16

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

3шт.

17

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

1шт.

18

87372550

HOSE,38.00 mm ID x 1050.00 mm, SAE 20R4 CLASS DI

Molded; Aspirator-Exhaust

1шт.

19

L56043

CAP

Inlet Air-Hood

1шт.

20

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1-4шт.

20a

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

3шт.

21

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

1шт.

22

87376176

FLAP

Wall Door

1шт.

23

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.

24

87745113

FOAM

Wall; Replaces 87376179

1шт.

25

NSS

NOT SOLD SEPARAT

SEAL, Air Cleaner; Production P/N 87395899; No Longer Required

1шт.

26

87395898

SEAL

Air Cleaner

1шт.

27

87534456

BAR

If Used

1шт.
