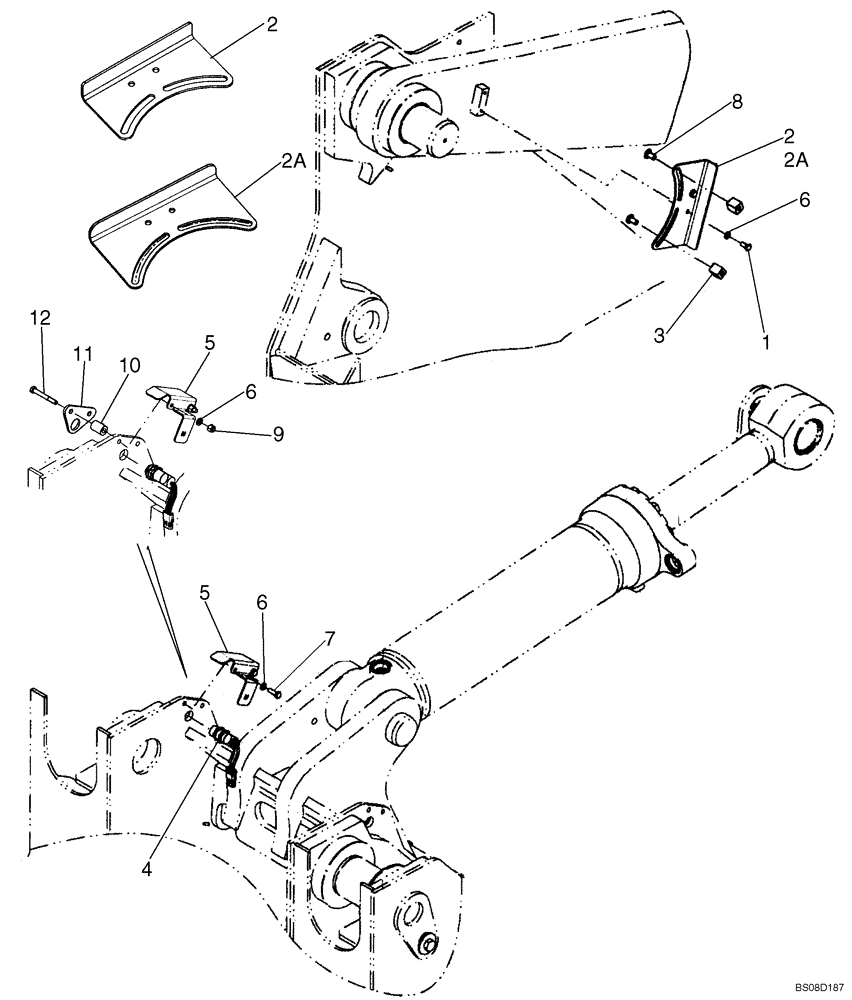

Запчасти Case 921E (09-03) - CONTROL - BUCKET HEIGHT AND RETURN-TO-TRANSPORT (Z-BAR LOADER) (09) - CHASSIS

1

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

2

87546218

PLATE

Target Mounting, 139 x 253 mm; If Used

1шт.

2a

87694569

PLATE

Target Mounting, 2155 x 294 mm; If Used

1шт.

3

87437102

BLOCK

3шт.

4

1546498C1

SWITCH

1шт.

5

87551335

COVER

1шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

7

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

8

811-12025

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 25mm, Cl 8.8

2шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

If Used

2шт.

10

87532054

SPACER

If Used

2шт.

11

87534446

BRACKET

Proximity Switch; If Used

1шт.

12

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

If Used

2шт.

12

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

If Used

2шт.
