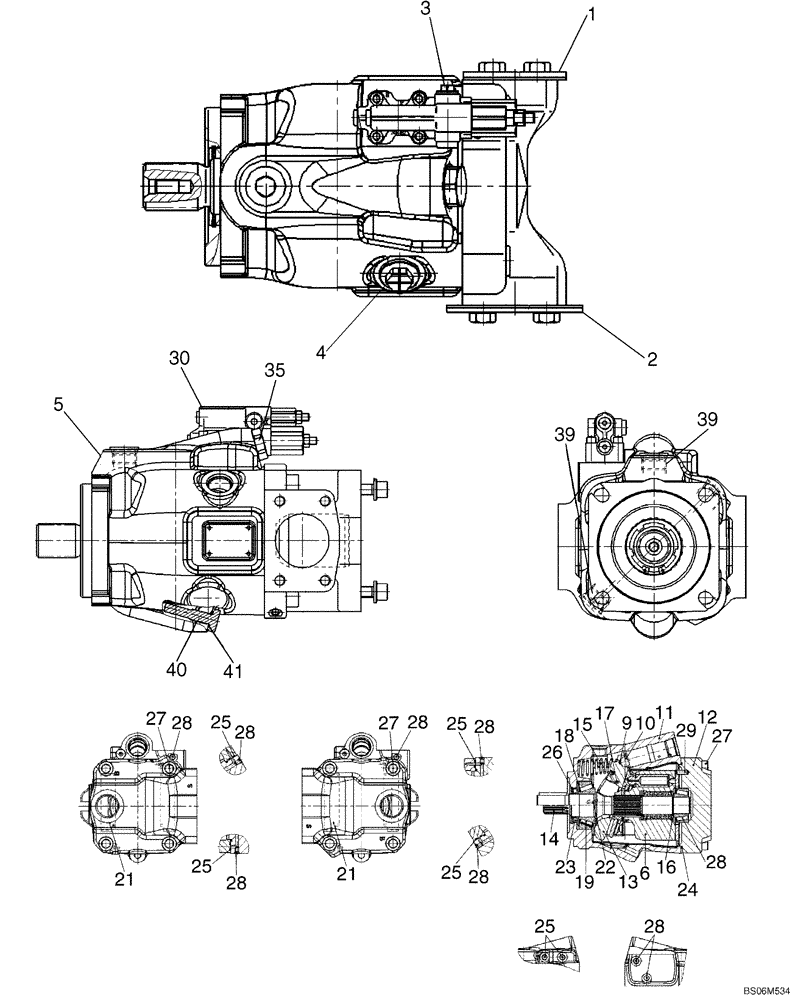

Запчасти Case 921E (08-34) - PUMP ASSY - REAR (08) - HYDRAULICS

87553128

HYDRAULIC PUMP

Rear; Incl. Parts on Figure 08-34A, Incl. Refs. 1 - 41

1шт.

84164304R

REMAN-HYD PUMP

921E TIER 3 (2/07-), Reman For New P/N 87553128

1шт.

84164304C

CORE-INJECTION PUMP

Return Number

1шт.

1

8605005

COVER

Flange

1шт.

2

8605006

COVER

Flange

1шт.

3

8604962

SCREW

1шт.

4

8605008

PLUG

1шт.

5

87551339

PUMP

Incl. Refs. 6 - 30; Not Serviced Seperately, For Reference Only; Order Component Parts

1шт.

6

87553136

REPAIR KIT

ROTARY GROUP; Incl. Refs. 7 - 8

1шт.

7

87553145

PISTON

Not Illustrated; See Figure 08-34A

1шт.

8

87553146

PLATE

Distributer; Not Illustrated

1шт.

9

87553137

SPRING

1шт.

10

87553138

PLATE

Ball

1шт.

11

87553139

HOUSING

Pump

1шт.

12

8605012

PLATE

Port

1шт.

13

87553140

PLATE

Port

1шт.

14

87551340

DRIVE SHAFT

1шт.

15

8605016

SPRING

2шт.

16

8605017

SHIM

1шт.

17

8605029

ORIFICE

1шт.

18

8605018

RING

1шт.

19

8605019

TAPERED BEARING

1шт.

20

8605020

TAPERED BEARING

Not Illustrated

1шт.

21

8605021

SHELL

Cradle

2шт.

22

8604959

SCREW,CSK, M5 x 16mm

Countersunk

2шт.

23

87553143

RING,45mm ID x 62mm OD x 1.4mm Thk

Shaft Seal

1шт.

24

87553144

O-RING,146mm ID x 3mm Width

1шт.

25

8604955

O-RING,7.65mm ID x 1.68mm Width

7.65 x 1.68 V90

2шт.

26

8605026

RING

Safety

1шт.

27

8605027

PLUG

4шт.

28

87358512

PIN

Double Break-Off

2шт.

29

8602832

PIN

Dowel, M6 x 18

1шт.

30

87553130

CONTROL VALVE

Incl. Refs. 31 - 34

1шт.

31

87553151

CONTROL VALVE

Not Illustrated

1шт.

32

87553152

GASKET

Control Valve; Not Illustrated

1шт.

33

8604964

HEX SOC SCREW,M6 x 30mm, Cl 10.9

Socket; M6 x 30-10.9; Not Illustrated

4шт.

34

87553153

SCREW,M12 x 1.5

Locking; Not Illustrated

1шт.

35

87553131

PUMP

Variable Displacement; Incl. Refs. 36 - 38

1шт.

36

87553154

CONTROL

Piston; Not Illustrated

1шт.

37

87551338

SCREW

Locking; Not illustrated

1шт.

38

8604956

O-RING,2.5mm Thk x 125mm ID

125 x 2.5 V80; Not Illustrated

1шт.

39

8602833

PLUG

M22 x 1.5

2шт.

40

87553134

SCREW,M12 x 1.5 x 1.5mm

Stop

1шт.

41

87553135

O-RING,14mm ID x 0.691" OD x 1.78mm

1шт.
