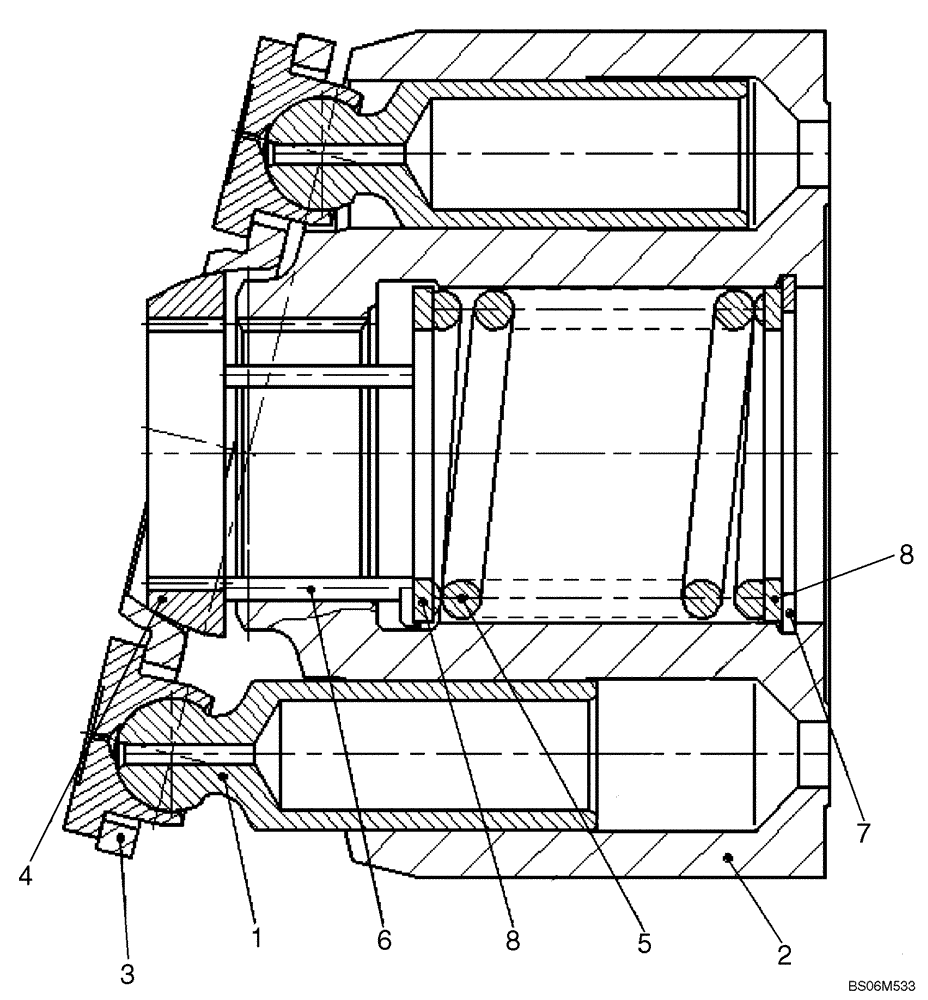

Запчасти Case 921E (08-33A) - PUMP ASSY - FRONT (08) - HYDRAULICS

87553127

HYDRAULIC PUMP

Front; Incl. Parts on Figure 08-33, Incl. Refs. 1 - 8

1шт.

84164303R

REMAN-HYD PUMP

921E TIER 3 ( 2/07 - ) Reman for new P/N 87553127

1шт.

84164303C

CORE-INJECTION PUMP

Return Number

1шт.

87553145

PISTON

Incl. Refs. 1 - 8

1шт.

1

87553147

PISTON

9шт.

2

8605035

BARREL

Cylinder

1шт.

3

87553148

PLATE

Retaining

1шт.

4

87553149

BALL

Retaining

1шт.

5

87553150

SPRING

1шт.

6

8605039

PIN

Pressure

3шт.

7

8605040

RING

Seeger-V-Ring

1шт.

8

8605041

RING

Back-Up

2шт.
