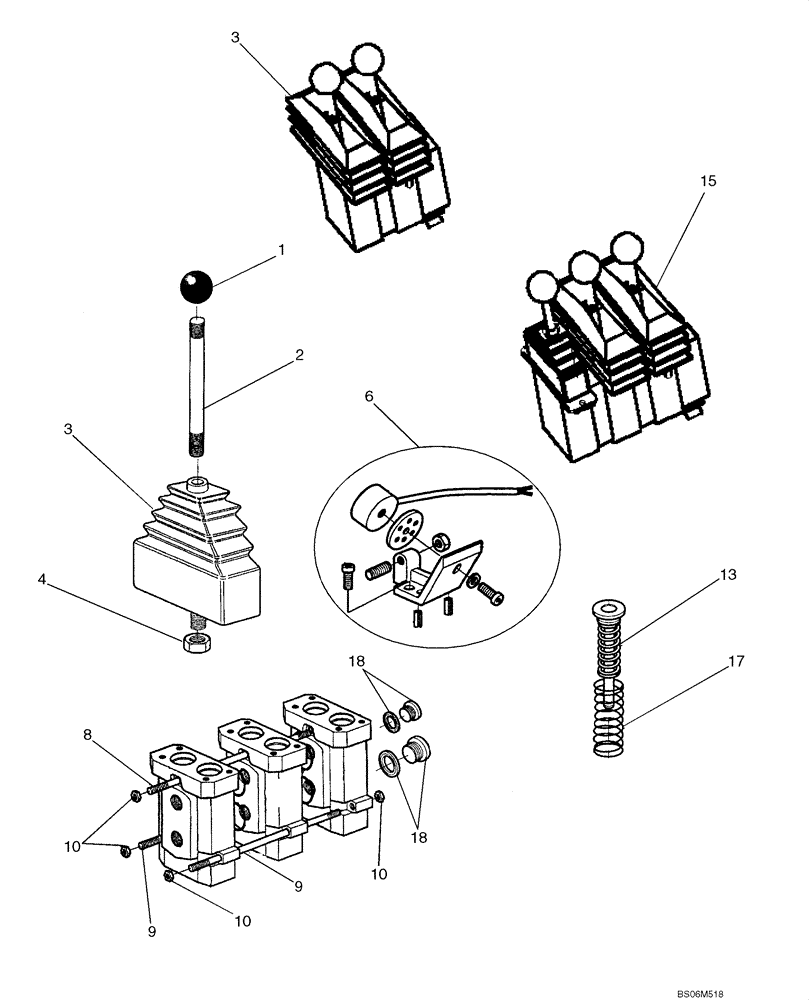

Запчасти Case 921E (08-31) - VALVE ASSY - 2 AND 3 LEVER LOADER CONTROL (08) - HYDRAULICS

87539289

CONTROL

Two Lever; Incl. Refs. 6-23

1шт.

87539290

CONTROL

Three Lever; Incl. 1 - 15, 17-25

1шт.

8604594

KIT

Handle; Incl. 1 - 4, Used With 3 Lever Assy. 87539290 Only

1шт.

1

NSS

NOT SOLD SEPARAT

Knob

1шт.

2

NSS

NOT SOLD SEPARAT

Handle

1шт.

3

NSS

NOT SOLD SEPARAT

Boot

1шт.

4

NSS

NOT SOLD SEPARAT

Nut

1шт.

5

8604552

SOLENOID

Regulator Unit; Not Illustrated

2шт.

6

8604553

REPAIR KIT

Magnet

2шт.

410933A1

KIT

Rod; Incl. 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

Rod

1шт.

9

NSS

NOT SOLD SEPARAT

Rod

2шт.

10

NSS

NOT SOLD SEPARAT

Nut

6шт.

11

8604557

SEAL

Inter-Section; Not Illustrated

10шт.

12

8604555

KIT

Pin; Not Illustrated

4-6шт.

13

87551310

SPRING KIT

3-5шт.

8604551

REPAIR KIT

Handle; Incl. 2, 5, 14, 15

2шт.

14

NSS

NOT SOLD SEPARAT

Handle; Not Illustrated

1шт.

15

NSS

NOT SOLD SEPARAT

Boot

1шт.

16

8604598

CONTROL VALVE

Section; Third; Used With Two Lever Assy. 87539289 Only, Not Illustrated

1шт.

17

8604607

SPRING

Pack

1шт.

18

8604608

MAGNETIC PLUG

Metric

3шт.

19

8604599

SPACER

Manifold; Not Illustrated

1-2шт.

REF

INSTRUCTION

FOLLOWING COMPONENTS MAY NOT BE ILLUSTRATED

1шт.

20

87551311

SPRING KIT

4-6шт.

21

449528A1

LEVER

Bucket

1шт.

22

449529A1

LEVER

Boom

2-3шт.

23

449530A1

MOUNTING PLATE

2-3шт.

24

449533A1

SEAL KIT

Seal; Push Pin Set; Used With 3 Lever Assy. 87539290 Only

1шт.

25

449555A1

LEVER

Auxilary; Used With 3 Lever Assy. 87539290 Only

1шт.
