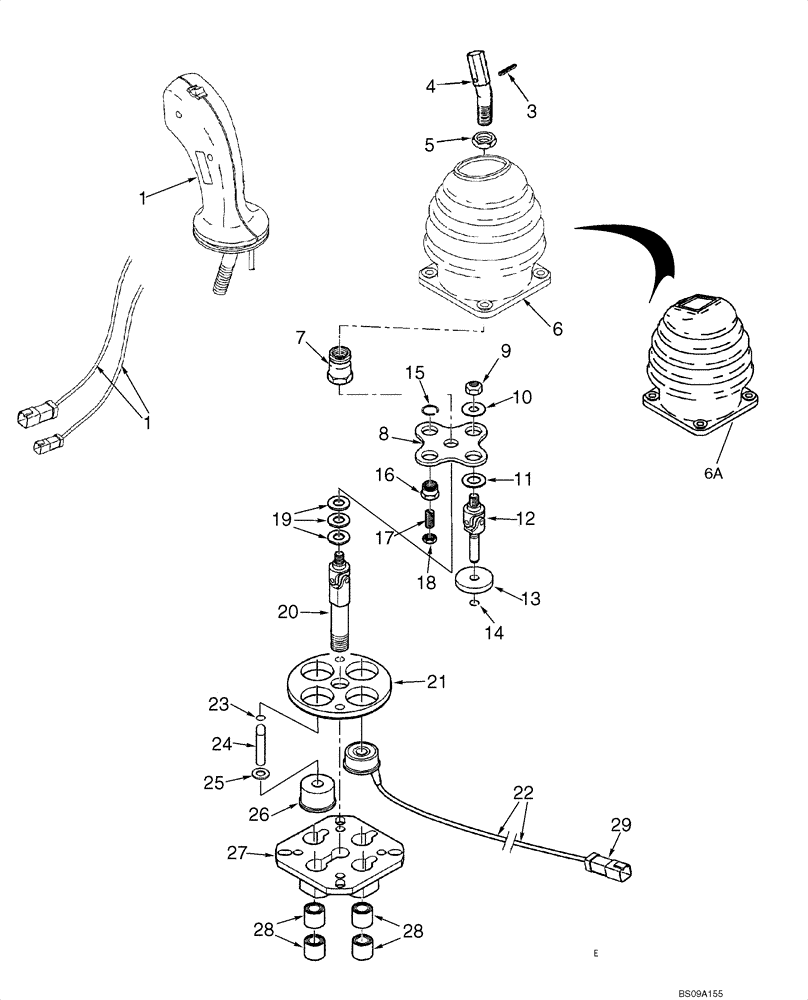

Запчасти Case 921E (08-28) - VALVE ASSY - JOYSTICK CONTROL (08) - HYDRAULICS

87537723

CONTROL

Joystick; Incl. Refs. 1 - 29; Incl. Figure 08-28A

1шт.

87537725

CONTROL

Joystick With 1 Lever; Incl. Refs. 1 - 29; Incl. Figure 08-28A, 08-29

1шт.

87537726

CONTROL

Joystick With 2 Lever; Incl. Refs. 1 - 29; Incl. Figure 08-28A, 08-30

1шт.

1

87372088

JOYSTICK

1шт.

2

410566A1

LOCK NUT

Locking; Not Illustrated

1шт.

410108A1

KIT

Joystick; Incl. Refs. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

Pin, Lock

1шт.

4

NSS

NOT SOLD SEPARAT

Lever

1шт.

5

829-1412

NUT,M12, Cl 10.9

1шт.

6

8604595

BOOT

Round Boot Top Shape; Replaces 427501A1; If Used

1шт.

6a

84123236

BOOT

Square Boot Top Shape; If Used

1шт.

7

8604528

LOCK NUT

M12

1шт.

8

8604529

BRACKET

1шт.

8604530

KIT

Shaft Detent; Incl. 9 - 14

3шт.

9

NSS

NOT SOLD SEPARAT

Nut, Lock

1шт.

10

NSS

NOT SOLD SEPARAT

Washer

1шт.

11

NSS

NOT SOLD SEPARAT

Washer

1шт.

12

NSS

NOT SOLD SEPARAT

Shaft

1шт.

13

NSS

NOT SOLD SEPARAT

Armature

1шт.

14

NSS

NOT SOLD SEPARAT

Ring, Snap

1шт.

8604531

KIT

Non-Detent Plunger; Use In Non-Detent Port 2; Incl. 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

Ring, Snap

1шт.

16

NSS

NOT SOLD SEPARAT

M16, Screw

1шт.

17

NSS

NOT SOLD SEPARAT

M8 x 16, Screw

1шт.

18

NSS

NOT SOLD SEPARAT

Nut

1шт.

19

8604532

SHIM

Set Of Three

1шт.

20

8604533

SHAFT

1шт.

21

8604534

FLANGE

1шт.

22

8604535

SOLENOID

24V; Use In Detent Ports, 1, 3, 4; Component Parts Not Serviced Separately

3шт.

8604536

REPAIR KIT

Plunger; Incl. 23 - 25

1шт.

23

NSS

NOT SOLD SEPARAT

Ring, Snap

1шт.

24

NSS

NOT SOLD SEPARAT

Plunger

1шт.

25

NSS

NOT SOLD SEPARAT

Washer

1шт.

26

8604537

GUIDE

Plunger

1шт.

27

8604538

BRACKET

1шт.

28

8604539

BUSHING

Set Of Four

1шт.

29

8604527

KIT

6 Pin Deutsch Connector

1шт.
