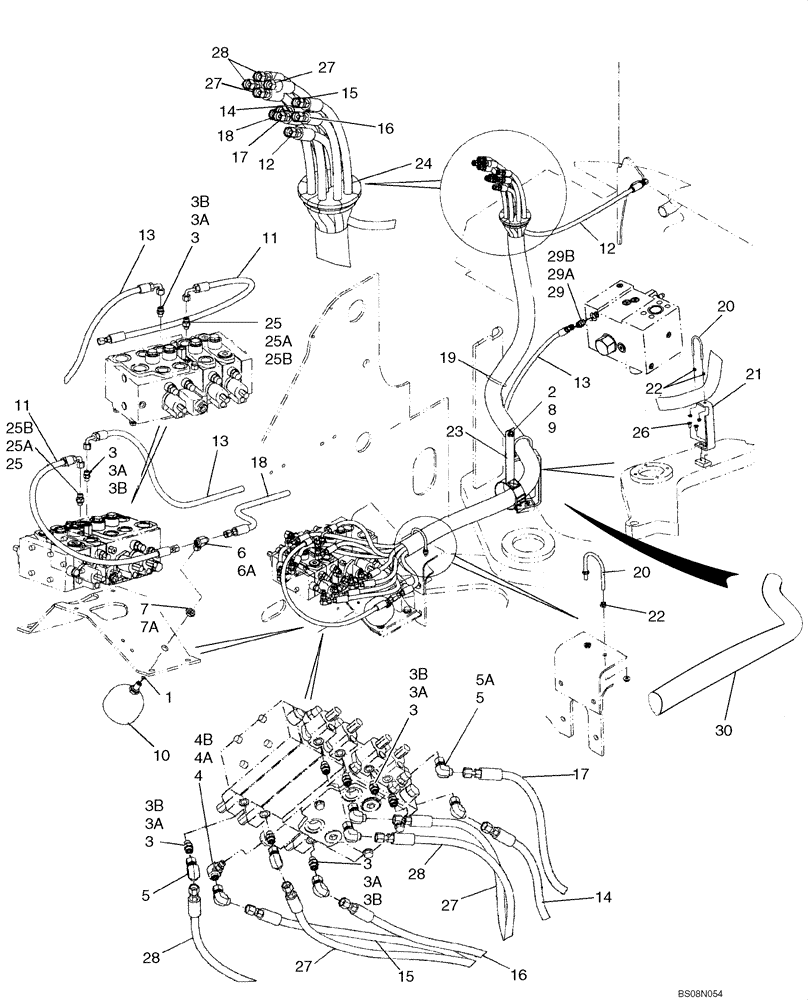

Запчасти Case 921E (08-22) - LOADER CONTROL - PILOT CONTROL LINES (08) - HYDRAULICS

1

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

2

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

3

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 3A, 3B

5-9шт.

3a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

3b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

4

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 4A, 4B

1шт.

4a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

4b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

5

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl. 5A

5-8шт.

5a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

6

701-434

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl. Ref. 6A

1шт.

6a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

7

701-909

NUT,11/16" - 16

Incl. Ref. 7A

1шт.

7a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

9

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

10

8501047

ACCUMULATOR

Pilot; Component Parts Not Serviced Separately

1шт.

11

87348206

HOSE ASSY.

981 mm (38-1/2in); Pilot Accumulator

1шт.

12

87590249

HOSE

ASSY. 1267 mm (50 in); Hydraulic Tank

1шт.

13

87390484

HOSE ASSY.

2641 mm; Articulation Load Sense

1шт.

14

87348216

HOSE ASSY.

3064 mm (120-1/2 in); Pilot Dump

1шт.

15

87348219

HOSE ASSY.

3201mm (126 in); Pilot Raise

1шт.

16

87348223

HOSE ASSY.

3091 mm (121-1/2 in); Pilot Rollback

1шт.

17

87348225

HOSE ASSY.

3168mm (124-3/4in); Pilot Lower

1шт.

18

87348227

HOSE ASSY.

3018 mm (119 in); Pilot Pressure

1шт.

19

87348231

SLEEVE

Hose Protection, 80 x 2193 mm

1шт.

20

87349269

U-BOLT

BOLT "U"

2шт.

21

87348236

BRACKET

1шт.

22

829-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 10

8шт.

23

87349992

CABLE TIE

CABLE STRAP

1шт.

24

232388A1

GROMMET

2шт.

25

391859A1

VALVE, CHECK

Incl. Refs. 25A, 25B

1шт.

25a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

25b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

26

906034R1

HEX SOC SCREW,Flat Hd, CSK, M12 x 25mm, Cl 10.9

M12 x 25

2шт.

REF

INSTRUCTION

FOLLOWING HOSES FOR THREE SPOOL VALVE

1шт.

27

87348211

HOSE ASSY.

3317 mm (130-1/2 in); Third Spool Pilot

2шт.

REF

INSTRUCTION

FOLLOWING HOSES FOR FOUR SPOOL VALVE

1шт.

28

87348212

HOSE ASSY.

3473mm (136-3/4 in); Fourth Spool Pilot

2шт.

29

700-315

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

1шт.

29a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

29b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

30

87333783

HOSE PROTECTION,80.00 mm ID x 1254.00 mm

If Used

1шт.
