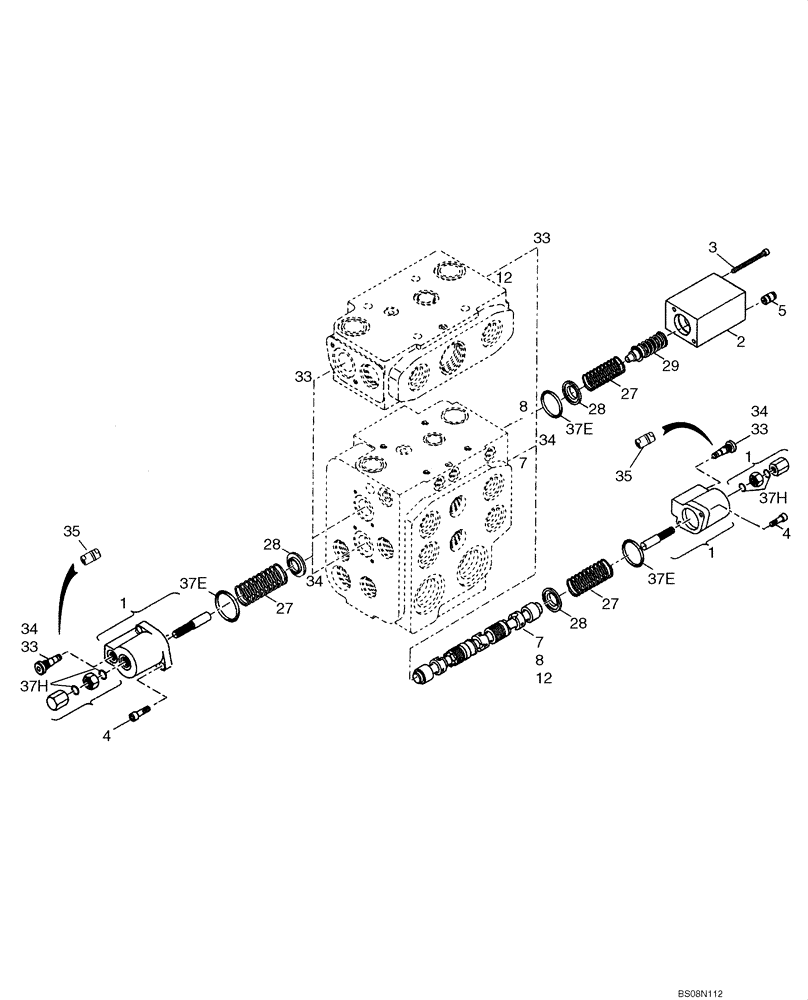

Запчасти Case 921E (08-21A) - VALVE SECTION - BUCKET/BOOM/OPTIONAL SPOOLS (2, 3, 4 SPOOL VALVE) (08) - HYDRAULICS

REF

INSTRUCTION

M6-22 TWO, THREE, AND FOUR SPOOL VALVE;Z-BAR

1шт.

87539287

VALVE

Four Spool; Incl. 1 - 37; Also Includes Parts On Figure 08-21

1шт.

87539286

VALVE

Three Spool; Incl. 1 - 37; Also Includes Parts On 08-21

1шт.

87539285

VALVE

Two Spool; Incl. 1 - 37; Also Includes Parts On 08-21

1шт.

1

8602890

COVER

Component Parts Not Serviced Separately

7шт.

2

87311762

COVER

Component Parts Not Serviced Separately

1шт.

3

8602892

HEX SOC SCREW,M6 x 105mm

Hex Socket; M6 x 105

2шт.

4

962-6016

HEX SOC SCREW,M6 x 16mm, Cl 10.9

14шт.

5

8604578

CHECK VALVE

1шт.

7

87364777

SPOOL

2шт.

8

87364776

SPOOL

1шт.

12

87364825

SPOOL

1шт.

27

8602917

SPRING

8шт.

28

8602918

RETAINER

Spring

8шт.

29

87311768

SPRING

1шт.

33

8602924

CARTRIDGE

M12 x 1,5

3-5шт.

34

87311766

PLUG

M12 x 1,5

2шт.

35

8604578

CHECK VALVE

Throttle Check; If Used

2шт.

37

8602927

SEAL KIT

For Control Block And Valve Section

1шт.

37a

NSS

NOT SOLD SEPARAT

O-Ring; 7.5 x 1.78

2шт.

37b

NSS

NOT SOLD SEPARAT

O-Ring;18 x 2.5

2шт.

37c

NSS

NOT SOLD SEPARAT

O-Ring; 25 x 3.53

2шт.

37d

NSS

NOT SOLD SEPARAT

O-Ring; 32.92 x 3.53

4шт.

37e

NSS

NOT SOLD SEPARAT

O-Ring; 40.94 x 2.62

6шт.

37f

NSS

NOT SOLD SEPARAT

O-Ring; 28.24 x 2.62

1шт.

37g

NSS

NOT SOLD SEPARAT

O-Ring; 23.47 x 2.62

2шт.

37h

NSS

NOT SOLD SEPARAT

O-Ring; 15.54 x 2.62

10шт.
