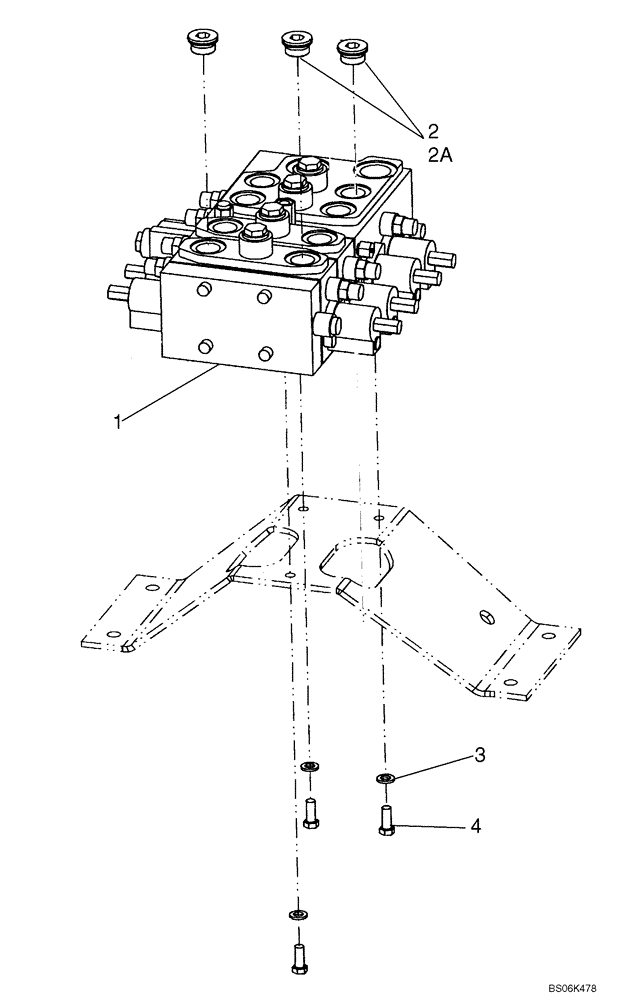

Запчасти Case 921E (08-20) - VALVE, CONTROL - MOUNTING, FOUR SPOOL (08) - HYDRAULICS

REF

INSTRUCTION

FOUR SPOOL VALVE MOUNTING

1шт.

1

87539287

VALVE

Four Spool; M6-22; Z-Bar Loader Valve; See Figures 08-21, 08-21A

1шт.

2

86583482

HEX SOCKET PLUG,M33 x 2

Incl. 2A

3шт.

2a

86639046

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

4

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

3шт.
