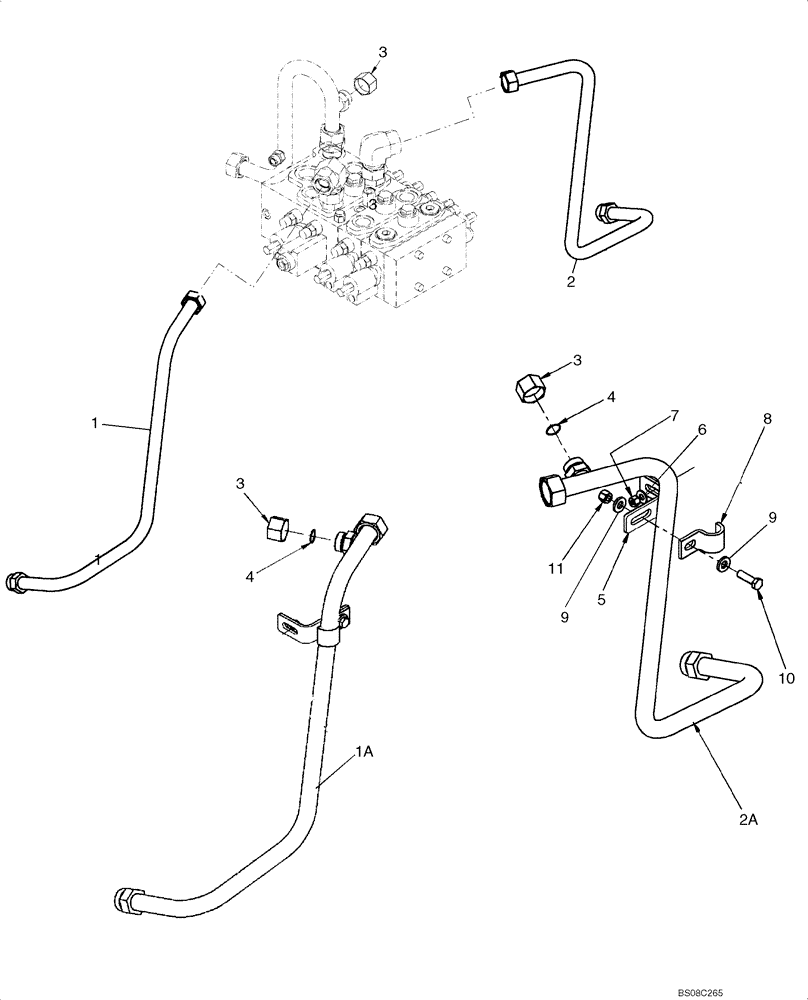

Запчасти Case 921E (08-18) - HYDRAULICS - NON- RIDE CONTROL (08) - HYDRAULICS

1

87618121

HYD TUBE,1.25" OD

LH Lift Cylinder Rod; Models Without Ride Control; No Longer Available, Order Tube Assy. 87638997, Ref. 1A

1шт.

1a

87638997

HYD TUBE,1.25" OD

LH Lift Cylinder Rod; Models Without Ride Control

1шт.

2

87618123

HYD TUBE,1.25" OD

RH Lift Cylinder Rod; Models Without Ride Control; No Longer Available, Order Tube Assy. 87638995, Ref. 2A

1шт.

2a

87638995

HYD TUBE,1.25" OD

RH Lift Cylinder Rod; Models Without Ride Control

1шт.

3

701-901

CAP,1-7/16" - 12

3шт.

4

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

REF

INSTRUCTION

THE FOLLOWING PARTS MAY OR MAY NOT BE USED

1шт.

5

87626083

BRACKET

Tube Mounting

2шт.

6

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

8

87347839

CLAMP

Tube Mounting

2шт.

9

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

10

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

11

832-10412

NUT,M12 x 1.75, Cl 8

2шт.
