(08-17) - HYDRAULICS - RIDE CONTROL

Запчасти Case 921E (08-17) - HYDRAULICS - RIDE CONTROL (08) - HYDRAULICS

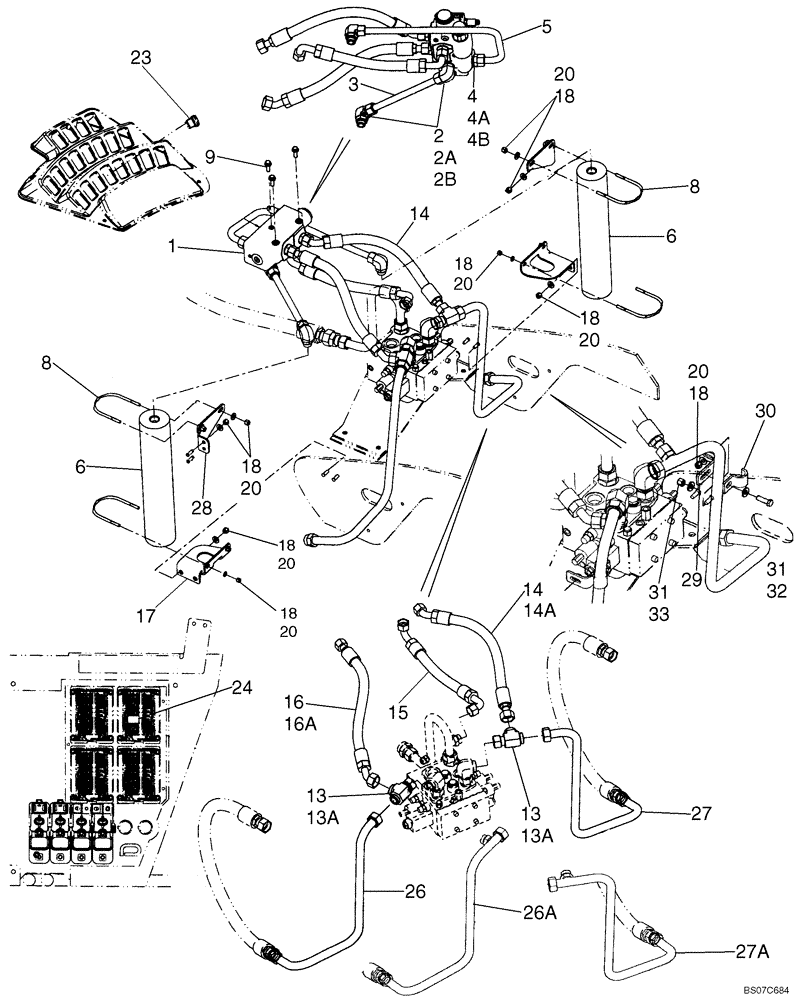

Схема запчастей Case 921E - (08-17) - HYDRAULICS - RIDE CONTROL (08) - HYDRAULICS
18
16
2
13
26
13a
2b
20
9
1
15
29
18
16a
4b
13
14
31
18
14a
17
6
20
30
28
20
2a
27a
8
4a
33
23
13a
18
32
20
24
6
4
20
18
18
26a
20
5
20
31
18
8
3
27
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87577897

CONTROL VALVE

Ride Control; RSM2-25; See Figure 08-36

1шт.

2

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl. Refs. 2A, 2B

3шт.

2a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

2b

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss

1шт.

3

87618119

HYD TUBE,25 mm OD x 347 mm L

RH Ride Control

1шт.

4

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl. Refs. 4A, 4B

4шт.

4a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

4b

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss

1шт.

5

87618117

HYD TUBE,1" OD

LH Ride Control

1шт.

6

87393434

ACCUMULATOR,3.8L

Ride Control, Black

2шт.

8

87492028

U-BOLT

Replaces 87593669; Replaces 87593669 U-Bolt Used On Some Models

4шт.

9

854-12035

BOLT,Hvy Hex, M12 x 35mm, Cl 10.9

3шт.

13

701-448

TEE,1-11/16" - 12 Male ORFS x 1-11/16" - 12 Male ORFS x 1-11/16" - 12 Female ORFS

Incl. Refs. 13A; If Used

2шт.

13a

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

Face Seal

3шт.

14

87347836

HOSE ASSY.

Ride Control, 704 mm ( 27 - 23/32 in ); No Longer Available, Order Hose 87639829, Ref. 14A

1шт.

14a

87639829

HOSE ASSY.

Ride Control, 709 mm ( 27 - 15/16 ); Used With Tube 87638995, Ref. 27A

1шт.

15

87526167

HOSE ASSY.

569mm ( 22-1/2 in ); Ride Control

1шт.

16

87526165

HOSE ASSY.

Ride Control, 703 mm ( 27 - 11/16 in ); No Longer Available, Order Hose 87639829, Ref. 16A

1шт.

16a

87639829

HOSE ASSY.

Ride Control; 709 mm ( 27 - 15/16 ); Used With Tube 87638997, Ref. 26A

1шт.

17

87529146

BRACKET

2шт.

18

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

16-18шт.

20

832-10412

NUT,M12 x 1.75, Cl 8

16-18шт.

23

87350055

SWITCH

Ride Control

1шт.

24

87312626

RELAY,24V

1шт.

26

87618115

HYD TUBE,1.25" OD

RH Lift Cylinder Base; No Longer Available, Order Tube 87638997

1шт.

26a

87638997

HYD TUBE,1.25" OD

RH Lift Cylinder Base

1шт.

27

87618113

HYD TUBE,1.25" OD

LH Lift Cylinder Rod; No Longer Available, Order Tube 87638995

1шт.

27a

87638995

HYD TUBE,1.25" OD

LH Lift Cylinder Rod

1шт.

28

87529147

BRACKET

Accumulator

2шт.

29

87626083

BRACKET

2шт.

30

87347839

CLAMP

2шт.

31

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

32

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

33

832-10412

NUT,M12 x 1.75, Cl 8

2шт.
