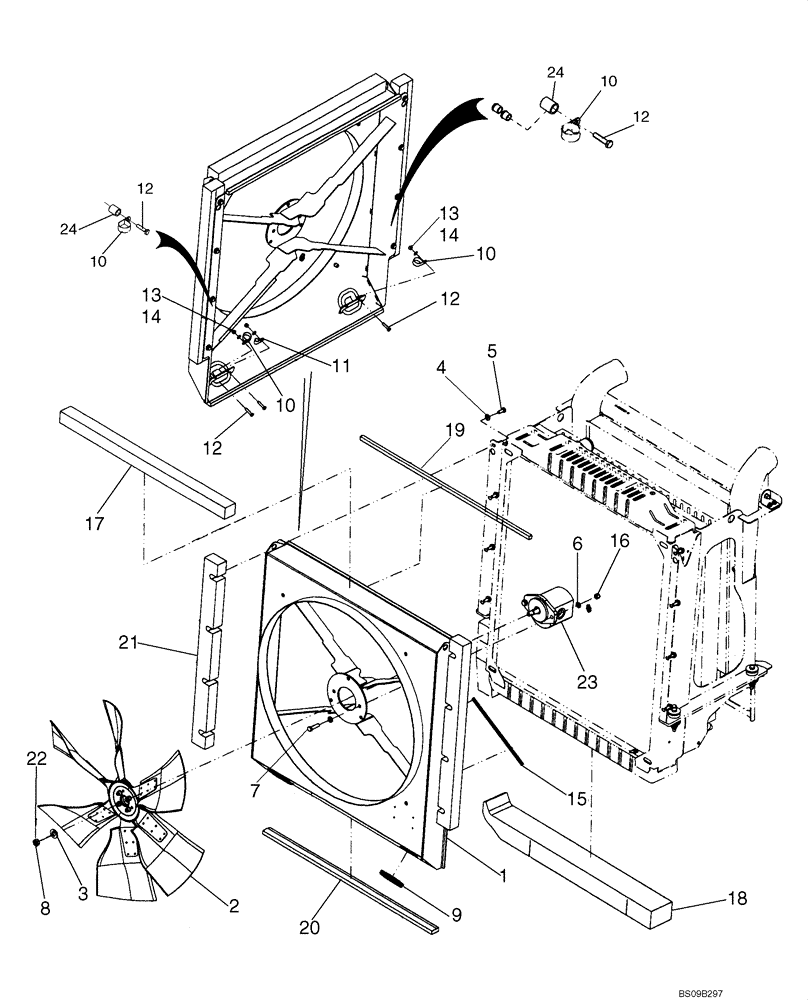

Запчасти Case 921E (02-05) - FAN - MOUNTING (02) - ENGINE

1

87605152

FRAME

Fan

1шт.

2

87700028

FAN

Assy, Replaces 396618A1

1шт.

3

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

1шт.

4

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

8шт.

5

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

8шт.

6

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

7

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

8

425-1310

SLOTTED NUT,5/8"-18, G5

1шт.

9

430319A1

SEAL

290 mm (11-716 in)

2шт.

10

515-22317

CLAMP,1 1/4", Insul, 5/16" Bolt

3-5шт.

11

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

12

627-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

3-5шт.

13

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

4шт.

14

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

15

433157A1

SEAL

345 mm (13-9/16 in); If Used

1шт.

16

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

17

87515430

INSULATOR

Fan Shroud Top

1шт.

18

444520A1

INSULATOR

Seal Radiator Bottom

1шт.

19

444522A1

INSULATOR

Shroud Top; 970 mm (38-3/16 in)

1шт.

20

444523A1

INSULATOR

Shroud Bottom; 970 mm (38-3/16 in)

1шт.

21

444524A1

INSULATOR,75mm W x 896mm L x 50mm Thk

Shroud Side; 896 mm (35-1/4 in)

2шт.

22

733-3232

COTTER PIN,M3.2 x 32

1шт.

23

87357968

MOTOR, HYDRAULIC,GEAR, 33 CC

Fan Drive; See Figures 08-10 - 08-12A For Hydraulics and Valve Assemblies; Component parts not available at time of printing

1шт.

87357968R

REMAN-HYD MOTOR

921E TIER 3 ( 2/07 - )

1шт.

87357968C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

435698A1

SEAL KIT

SEALS, Fan Drive

1шт.

24

87013910

SPACER,1/2" Pipe x 1"

2шт.
