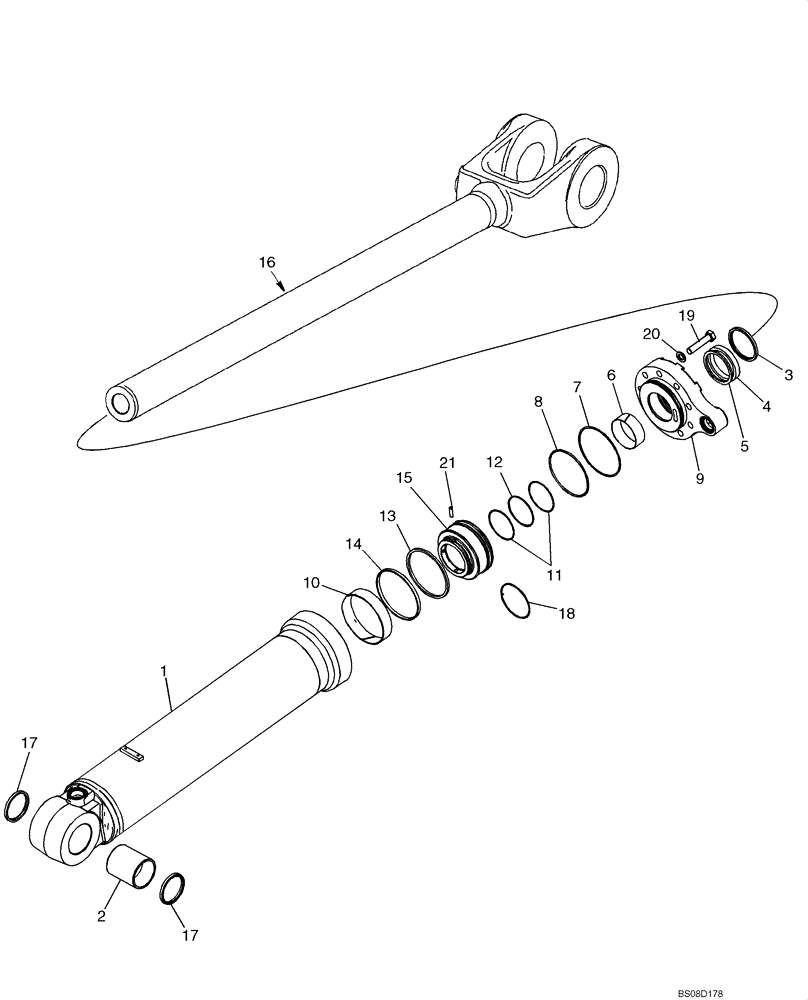

Запчасти Case 921E (08-16) - CYLINDER ASSY - LOADER LIFT (08) - HYDRAULICS

87349604

CYLINDER ASSY.,Double Acting, 101.6mm Rod, 867.7mm Stroke

Loader Lift; Incl. Refs. 1 - 21

2шт.

87349604R

REMAN-HYD CYLINDER

921E TIER 3 ( 2/07 - )

2шт.

87349604C

CORE-HYD CYLINDER

Return Number

1шт.

87529742

SEAL KIT

Incl. Refs 3 - 8, 10 - 14

1шт.

1

87349610

TUBE,165.10 mm DIA

Tube Weldment; Incl. Ref. 2

1шт.

2

87613424

BUSHING,95.5mm ID x 107.82mm OD x 114.5mm L

Replaces L127972; Not Illustrated

1шт.

87349594

GLAND

Incl. Refs. 3 - 9

1шт.

3

S108245

WIPER SEAL

Wiper, Rod; 101.6

1шт.

1542883C1

SEAL KIT

Rod and Buffer Seals; Incl. Refs. 4, 5

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL, ROD

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL, BUFFER

1шт.

6

1346213C1

BUSHING

Rod Bearing

1шт.

7

G110679

RING,164.52mm ID x 173.66mm OD x 1.9mm Thk

Backup Ring

1шт.

8

238-5362

O-RING,0.21" Thk x 6.225" ID, -362, Cl 5, 75 Duro

1шт.

9

NSS

NOT SOLD SEPARAT

GLAND, Order Assy. 87349594

1шт.

87529741

PISTON ASSY

Incl. Ref. 10 - 15

1шт.

10

S109539

WEAR RING,Split, 158.75mm ID x 165.1mm OD x 38.1mm Thk

1шт.

11

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

12

238-5242

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

1шт.

13

87399718

SEALING RING,Square, 6.86mm Thk x 145.16mm ID

Ring

1шт.

14

87399594

SEAL,159.39mm ID x 166.85mm OD x 9.32mm Thk

Piston

1шт.

15

87349638

PISTON

88.9; 50.8 Rod

1шт.

16

87349625

PISTON ROD

1шт.

17

L128529

SEAL,95.2mm ID x 107.9mm OD x 8.3mm Thk

3-3/4 in Pin

2шт.

18

1346328C1

CIRCLIP

Retaining Ring

1шт.

19

827-20090

BOLT,Hex, M20 x 2.5 x 90mm, Cl 10.9

9шт.

20

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

Flat

9шт.

21

G106602

LOCK PIN

Locking

1шт.
