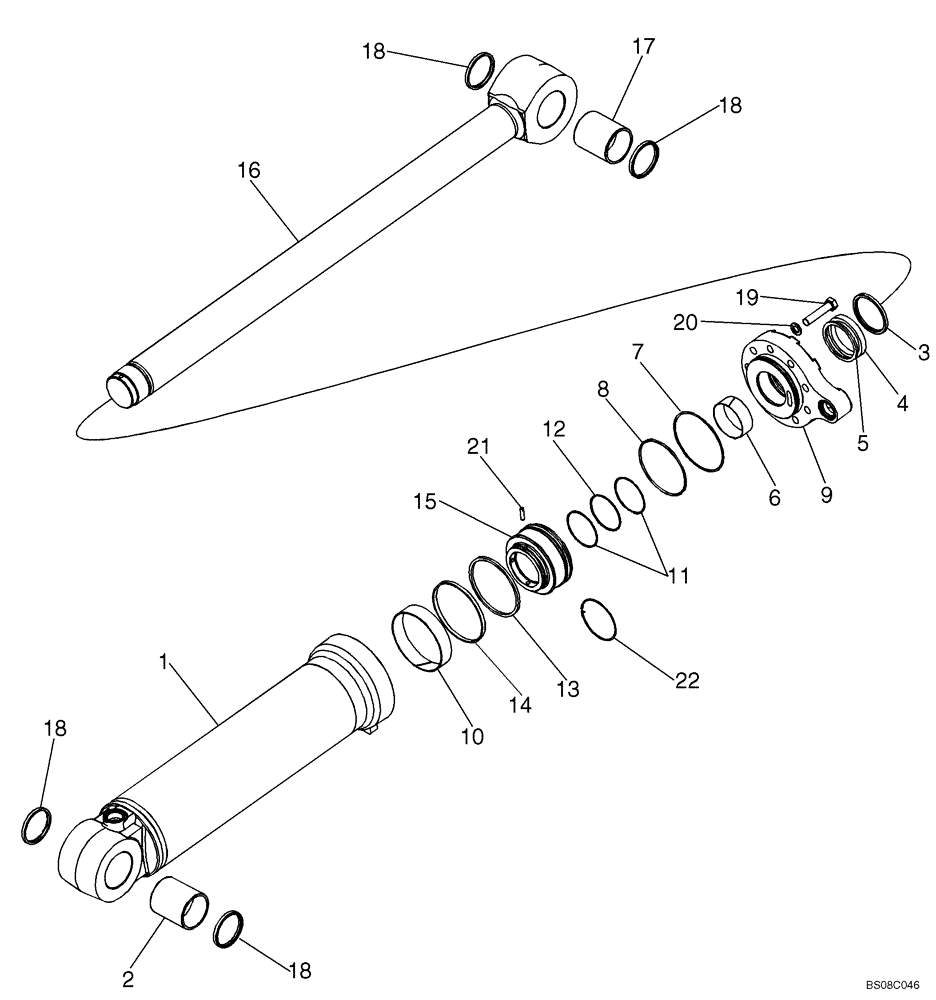

Запчасти Case 921E (08-15) - CYLINDER ASSY - LOADER BUCKET (Z BAR LOADER) (08) - HYDRAULICS

87592926

CYLINDER

Loader Bucket Tilt, 177.7 ID x 745.3 strk, W/ Side Mounting Block For RTD Harness Guard; Incl. Refs. 1, 2 - 22; No Longer Available, Order Tilt Cylinder 87700021 and RTD Prox. Switch Cover 87403966 (See Fig. 09-01)

1шт.

87700021R

REMAN-HYD CYLINDER

921E TIER 3 (2/07-), Reman for New P/N 87592926

1шт.

87700021C

CORE-HYD CYLINDER

Return Number

1шт.

87700021

BUCKET CYLINDER,Double Acting, 101.6mm Rod, 745.3mm Stroke

Loader Bucket Tilt, 177.7 ID x 745.3 strk, W/Out Side Mounting Block; Incl. Refs. 1A - 22

1шт.

87700021R

REMAN-HYD CYLINDER

921E TIER 3 (2/07-)

1шт.

87700021C

CORE-HYD CYLINDER

Return Number

1шт.

87399338

SEAL KIT

Z-Bar Bucket Cylinder; Incl. Refs. 3 - 8, 10 - 14, 18

1шт.

1

87349560

TUBE,177.80 mm DIA

Tube Weldment, W/ Side Bracket for RTD Harness Guard; No Longer Available, Order Tube 87700018 and RTD Prox. Switch Cover 87403966

1шт.

1a

87700018

TUBE,177.8 mm DIA x 995.2 mm L

Tube Weldment, W/Out Side Mounting Block; Incl. Ref. 2

1шт.

2

87625611

BUSHING,89.18mm ID x 101.61mm OD x 114.5mm L

Replaces L127807

1шт.

87349594

GLAND

Incl. Refs. 3 - 9

1шт.

3

S108245

WIPER SEAL

Wiper, Rod

1шт.

1542883C1

SEAL KIT

Rod and Buffer Seals; Incl. Refs. 4 , 5

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL, ROD

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL, BUFFER

1шт.

6

1346213C1

BUSHING

Bearing Rod

1шт.

7

G110679

RING,164.52mm ID x 173.66mm OD x 1.9mm Thk

Backup

1шт.

8

238-5362

O-RING,0.21" Thk x 6.225" ID, -362, Cl 5, 75 Duro

1шт.

9

NSS

NOT SOLD SEPARAT

GLAND, Order Assembly 87349594

1шт.

87537156

PISTON ASSY

Incl. Refs. 10 - 15

1шт.

10

S109534

WEAR RING,Split, 171.45mm ID x 177.8mm OD x 38.1mm Thk

177.8 Dia.

1шт.

11

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

2шт.

12

238-5242

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

1шт.

13

S110156

SEALING RING,6.86mm Thk x 157.86mm ID

Ring

1шт.

14

87399595

SEAL,172.11mm ID x 179.58mm OD x 9.32mm Thk

Piston

1шт.

15

NSS

NOT SOLD SEPARAT

PISTON, Order Assembly 87537156

1шт.

16

87549305

PISTON ROD

ASSY, Incl. Ref. 17

1шт.

17

87625611

BUSHING,89.18mm ID x 101.61mm OD x 114.5mm L

1шт.

18

1346341C1

WIPER SEAL,86.49mm ID x 101.73mm OD x 7.95mm Thk

Pin

4шт.

19

827-20090

BOLT,Hex, M20 x 2.5 x 90mm, Cl 10.9

9шт.

20

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

9шт.

21

G106602

LOCK PIN

Locking

1шт.

22

1346328C1

CIRCLIP

1шт.
