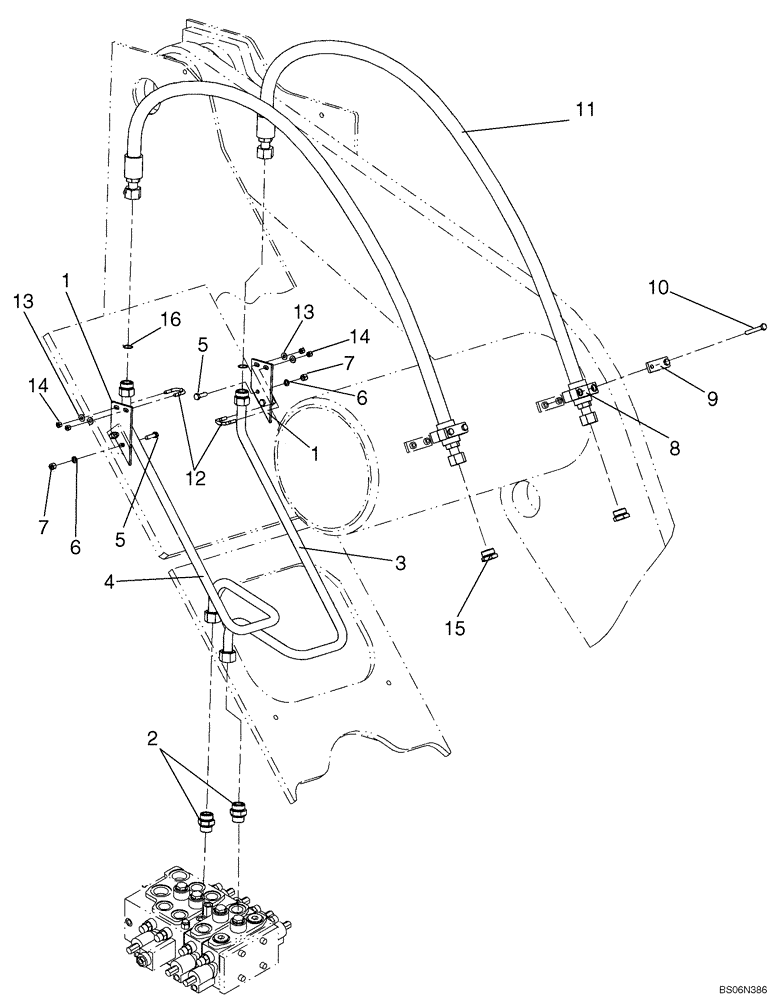

Запчасти Case 921E (08-14A) - HYDRAULICS - LOADER AUXILIARY (Z-BAR) (08) - HYDRAULICS

1

87357607

BRACKET

Tube Mounting

2шт.

2

86580179

HYD CONNECTOR,1-7/16" - 12 ORFS x M33 x 2 ORB

Includes 2A, 2B

2шт.

2a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

2b

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

3

87618127

HYD TUBE,25 mm OD x 714 mm L

Left Side

1шт.

4

87618125

HYD TUBE,25 mm OD x 714 mm L

Right Side

1шт.

5

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

4шт.

6

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

8

87444561

BLOCK

Tube Mounting

2шт.

9

8500858

PLATE

Block Cover

2шт.

10

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

4шт.

11

87398521

HOSE ASSY.

Z-Bar Auxiliary; 1968 mm (77 - 1/2 in)

2шт.

11

87690766

HOSE ASSY.

XR Auxiliary; 2488 mm (97 - 61/64 in)

2шт.

12

87391285

U-BOLT

2шт.

13

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

14

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

15

701-915

PLUG,Hex, 1-7/16" - 12 ORFS

Incl. Ref. 15A

2шт.

15a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

2шт.

16

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.
