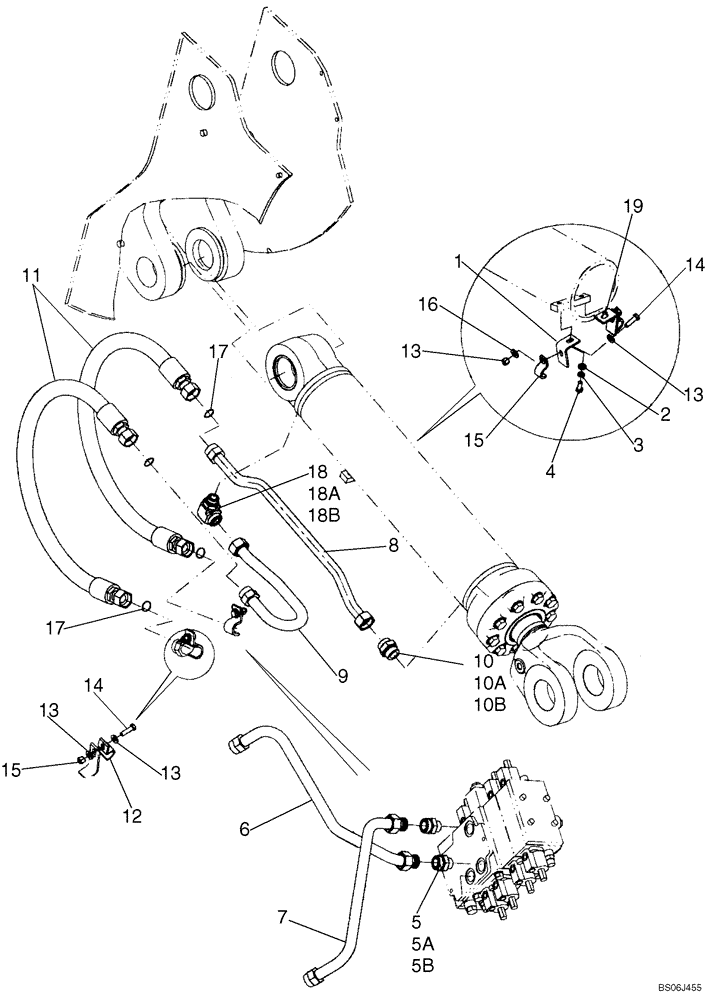

Запчасти Case 921E (08-14) - HYDRAULICS - LOADER LIFT (08) - HYDRAULICS

REF

INSTRUCTION

QUANITIES SHOWN FOR BOTH LEFT AND RIGHT SIDE

1шт.

1

L128507

SUPPORT

Tube Mounting

4шт.

2

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

3

892-11012

LOCK WASHER,M12

6шт.

4

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

6шт.

5

84164188

HYD CONNECTOR

Incl. Refs. 5A, 5B; Replaces 700-134 Connector Used On Some Models

2шт.

5a

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss

1шт.

5b

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

Face Seal

1шт.

6

87618111

HYD TUBE,1.25" OD

Lift Cylinder Rod RH

1шт.

7

87618109

HYD TUBE,31.75 mm OD x 422 mm L

Lift Cylinder Base LH

1шт.

8

87618103

HYD TUBE,31.75 mm OD x 806 mm L

Lift Cylinder Rod

2шт.

9

87618101

HYD TUBE,1.25" OD

Lift Cylinder Base

2шт.

10

84164190

HYD CONNECTOR

Incl 10A, 10B; Replaces 700-133 Connector Used On Some Models

1шт.

10a

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

Face Seal

1шт.

10b

637-64386

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

Boss

1шт.

11

87642056

HOSE ASSY.

Lift Cylinder; 1328mm ( 52 in ); Replaces 87544681

4шт.

12

87347839

CLAMP

Tube Mounting

4шт.

13

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

12шт.

14

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

8шт.

15

832-10412

NUT,M12 x 1.75, Cl 8

8шт.

16

S120173

CLAMP

Tube

4шт.

17

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

Face Seal

8шт.

18

84164189

HYD CONNECTOR

ELBOW, Incl. 18A, 18B; Replaces 700-335 Elbow Used On Some Models

1шт.

18a

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

Face Seal

1шт.

18b

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss

1шт.

19

87396340

BRACKET, SUPPORTING

Tube Mounting

2шт.
