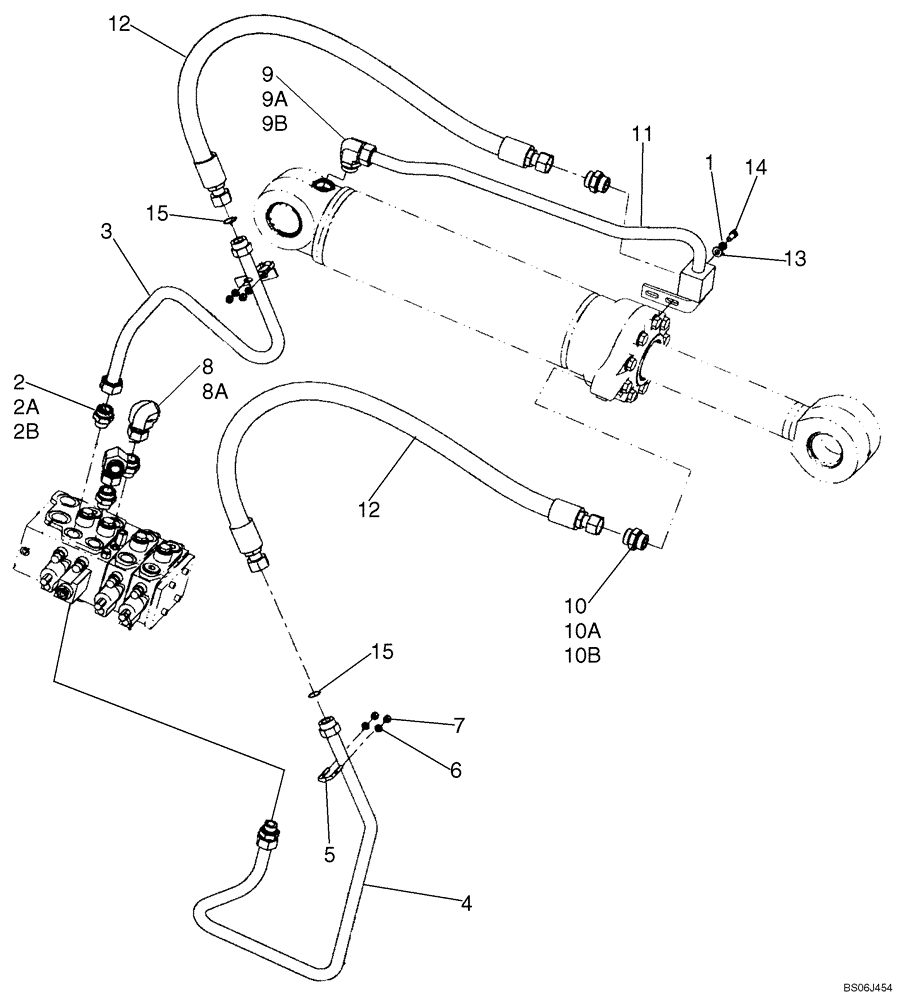

Запчасти Case 921E (08-13) - HYDRAULICS - LOADER BUCKET (08) - HYDRAULICS

1

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

2

84164188

HYD CONNECTOR

Incl. Refs. 2A, 2B; Replaces 700-134 Connector Used On Some Models

3шт.

2a

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss

1шт.

2b

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

Face Seal

1шт.

3

87618107

HYD TUBE,31.75 mm OD x 408 mm L

Tilt Cylinder RH

1шт.

4

87618105

HYD TUBE,1.25" OD

Tilt Cylinder LH

1шт.

5

253410A1

U-BOLT,M10 x 1.5 x 67mm

BOLT "U" M10 x.1.5

2шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

8

701-359

ELBOW,90 Degree Elbow, 1-11/16" - 12 Male ORFS x 1-11/16" - 12 Female ORFS

Incl. Ref. 8A

2шт.

8a

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

Face Seal

2шт.

9

700-309

ELBOW,90 Degree Elbow, 1-11/16" - 12 Male ORFS x M42 x 2 Male ORB

Incl. Refs. 9A, 9B

1шт.

9a

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

Face Seal

1шт.

9b

637-64386

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

Boss

1шт.

10

84164190

HYD CONNECTOR

Incl. Refs. 10A, 10B; Replaces 700-133 Connector Used On Some Models

1шт.

10a

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

Face Seal

1шт.

10b

637-64386

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

Boss

1шт.

11

87618099

HYD TUBE,1.25" OD

Tilt Cylinder Base

1шт.

12

87642057

HOSE ASSY.

Tilt Cylinder; 1558mm ( 61 in ); Replaces 87555270

2шт.

13

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

14

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

15

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

2шт.
