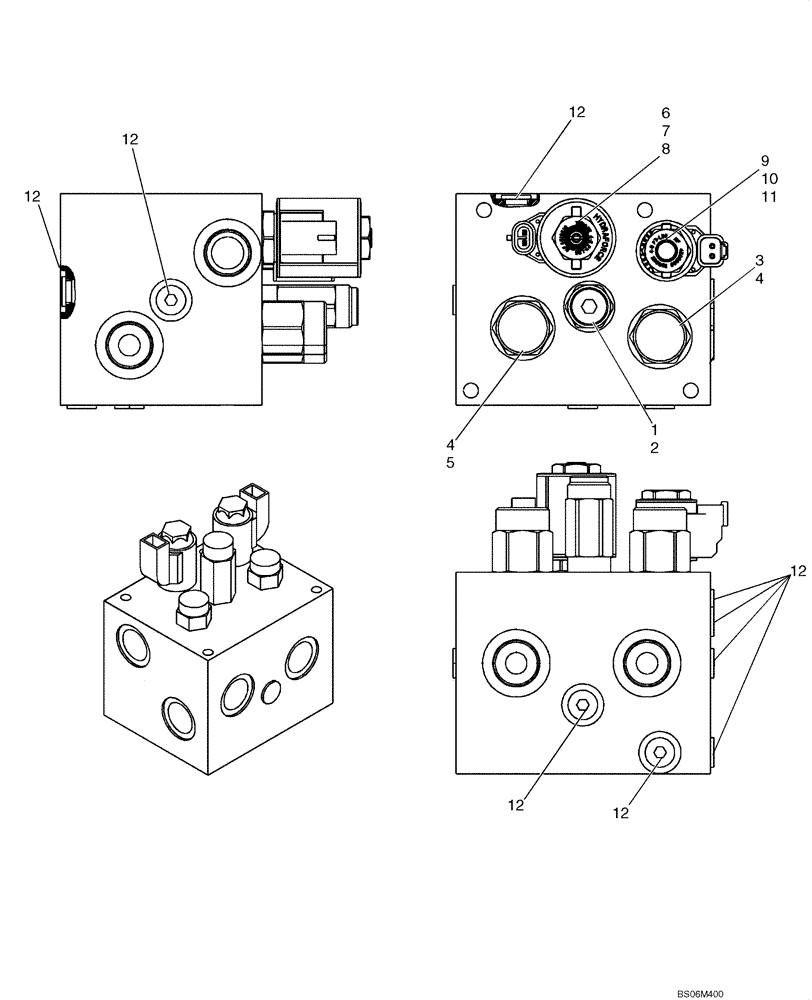

Запчасти Case 921E (08-12A) - VALVE ASSY - FAN SPEED AND REVERSER (08) - HYDRAULICS

8500565

HYDRAULIC VALVE

Fan Speed and Reverser; Incl. Refs. 1-12, If Used

1шт.

1

8605053

VALVE PRESSURE RELIE

Incl. Ref. 2

1шт.

2

1542833C1

SEAL KIT

1шт.

3

8605056

PILOT VALVE

Directional; Incl. Ref. 4

1шт.

4

388744A1

SEAL KIT

Seal; Includes (4) O-Rings and (6) Back-Up Rings

2шт.

5

8605059

PILOT VALVE

Directional; Incl. Ref. 4

1шт.

6

8605062

SOLENOID VALVE

EF Pilot Operated Relief; Incl. Ref. 7

1шт.

7

1542830C2

SEAL KIT

1шт.

8

87617169

COIL

Electronic; Replaces 8605065

1шт.

9

8605066

VALVE PRESSURE RELIE

Solenoid Cartridge; Incl. Ref. 9A

1шт.

9a

329483A1

SEAL KIT

Not Illustrated

1шт.

10

87617168

SEAL KIT

Includes (3) O-Rings and (4) Back-Up Rings

1шт.

11

87617170

COIL

Electronic; Replaces 8605069

1шт.

12

218-5209

PLUG,Hex, 9/16"-18 ORB

9шт.
