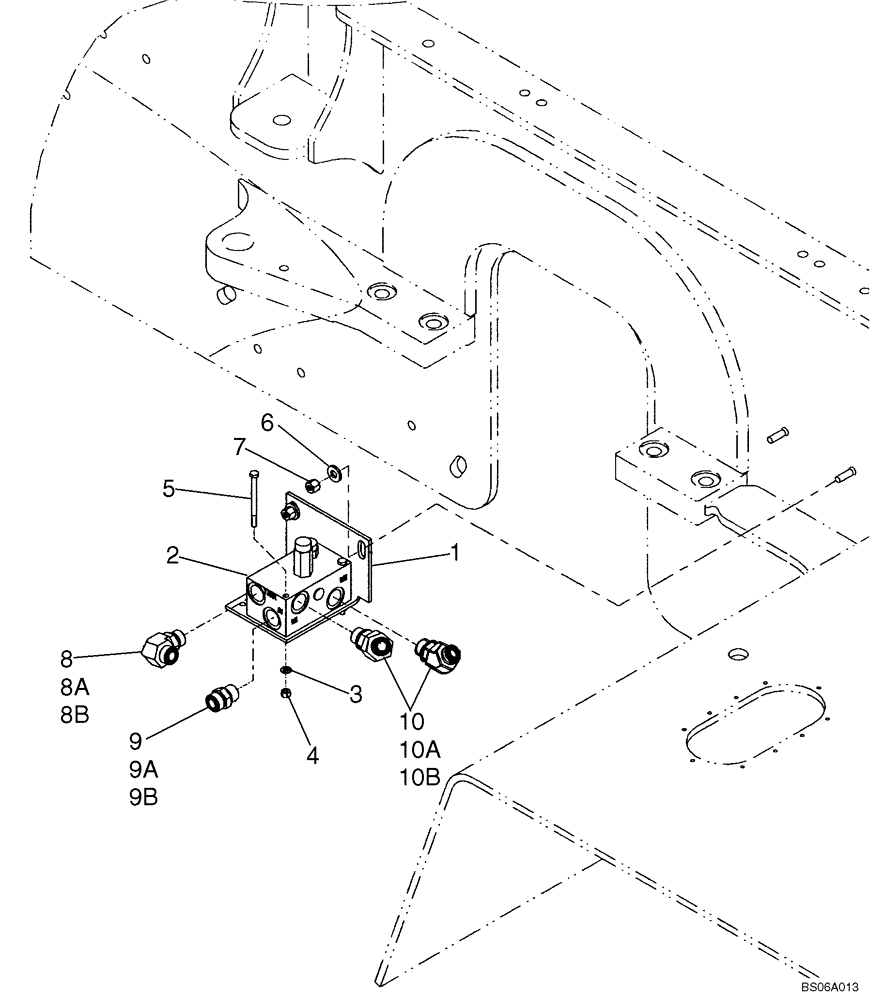

Запчасти Case 921E (08-11) - VALVE, FAN RELIEF - MOUNTING (08) - HYDRAULICS

REF

INSTRUCTION

- FAN RELIEF VALVE MOUNTING, IF USED

1шт.

1

87359881

BRACKET

Fan Relief Valve Mounting

1шт.

2

8500562

HYDRAULIC VALVE

Fan Relief; See Figure 08-11A

1шт.

3

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

2шт.

4

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

5

827-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

2шт.

6

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

7

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

8

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 8A, 8B

2шт.

8a

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss

1шт.

8b

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face End

1шт.

9

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 9A, 9B

1шт.

9a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

9b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss

1шт.

10

700-387

ELBOW,45 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. Refs. 10A, 10B

1шт.

10a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

10b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss

1шт.
