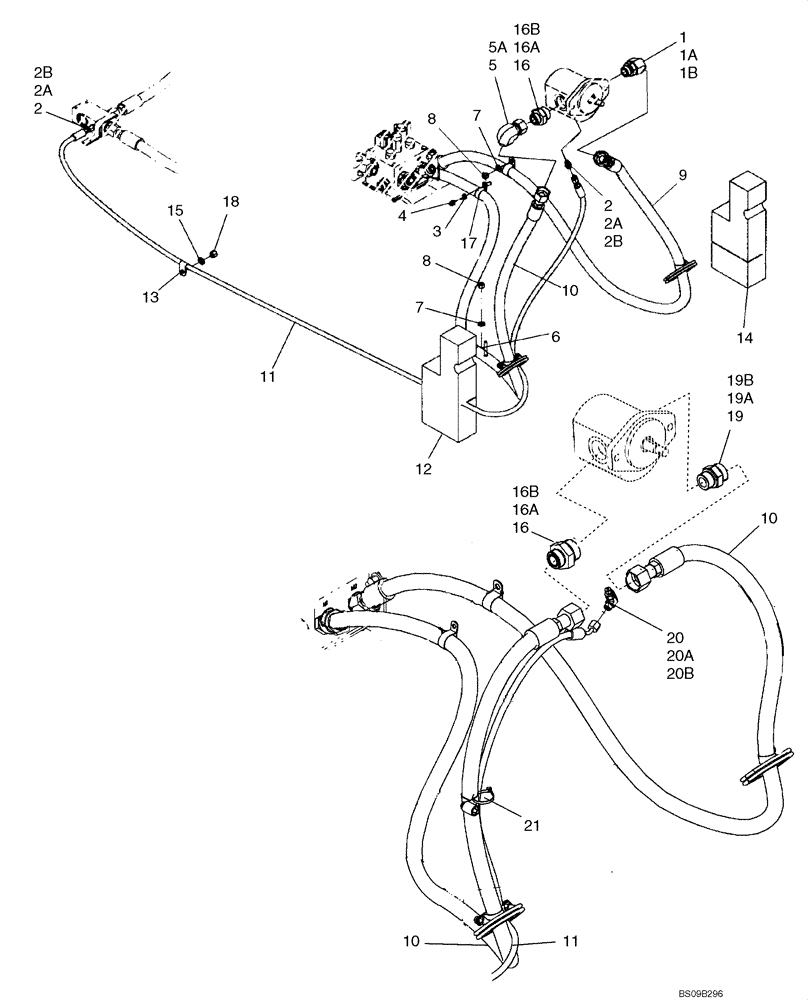

Запчасти Case 921E (08-10) - HYDRAULICS - FAN DRIVE (08) - HYDRAULICS

1

700-318

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl. 1A, 1B; If Used

1шт.

1a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

1b

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss

1шт.

2

700-100

HYD CONNECTOR,9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

Incl. 2A, 2B

1-2шт.

2a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

2b

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

Boss

1шт.

3

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

4шт.

4

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

5

701-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 16 Female ORFS

Incl. 5A; If Used

1шт.

5a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

6

515-24317

CLAMP,1 1/4", Insul, 7/16" Bolt

2шт.

7

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

9

87370182

HOSE ASSY.,19.05mm ID x 2137mm L, SAE 100R12

Fan Supply; 2137mm ( 84 in ); If Used

1шт.

10

87370181

HOSE ASSY.,19.05mm ID x 2462mm L, SAE 100R12

Fan Return; 2462mm ( 97 in ); May Also Be Used In Fan Supply Configuration

1-2шт.

11

87673186

HOSE ASSY.

Fan Drain; To Axle Cooler Manifold; 3202 mm ( 126 - 1/16 in ), Replaces 87599589

1шт.

12

87515431

INSULATOR

Radiator Side; LH

1шт.

13

515-25143

CLAMP,9/16", Insul, 1/2" Bolt

1шт.

14

87515433

INSULATOR

Radiator Side; RH

1шт.

15

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

16

700-158

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M42 x 2 Male ORB

Incl. Refs. 16A, 16B

1шт.

16a

637-64386

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

1шт.

17

515-22317

CLAMP,1 1/4", Insul, 5/16" Bolt

1шт.

16b

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

5шт.

18

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

19

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl. Refs. 19A, 19B; If Used

1шт.

19a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

19b

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

20

700-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

Incl. Refs. 20A, 20B; If Used

1шт.

20a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

20b

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

21

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP If Used

1шт.
