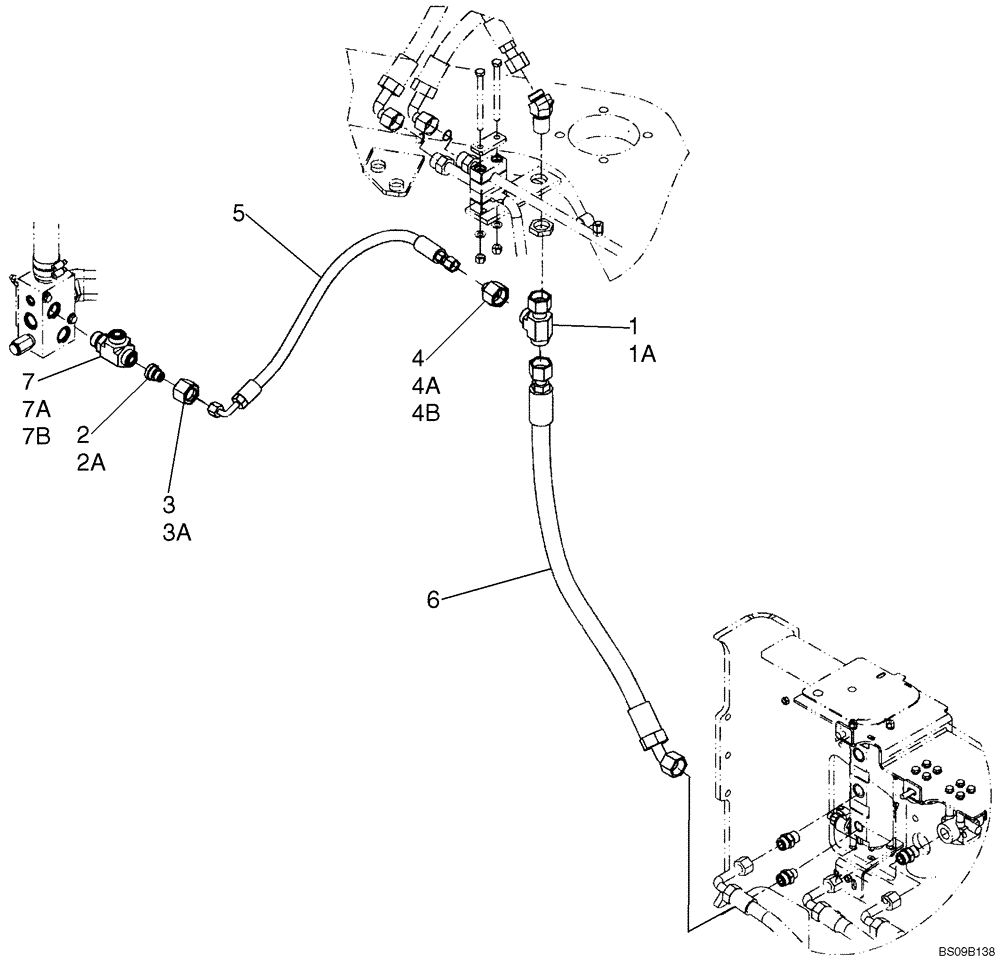

Запчасти Case 921E (08-08A) - HYDRAULICS - AXLE COOLER BYPASS (08) - HYDRAULICS

1

701-417

TEE,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Female ORFS

Incl. Ref. 1A

1шт.

1a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

3шт.

2

201-142

REDUCER,11/16"-16 Male x 1 3/16"-16 Fem, ORFS

Incl. Ref. 2A

1шт.

2a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

3

703-904

TUBE NUT,1-3/16" - 12

Incl. Ref. 3A

1шт.

3a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

4

87657103

ADAPTER

With Orifice Plug; Replaces 87626088; Incl. Refs. 4A, 4B

1шт.

4a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

4b

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

5

87626087

HOSE

Bypass Axle Cooler; 612 mm ( 24 - 1/8 in. )

1шт.

6

87534450

HOSE

Supply Brake to Motor; 915 mm ( 36 in. )

1шт.

7

700-428

TEE,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. Refs. 7A, 7B

1шт.

7a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

2шт.

7b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss

1шт.
