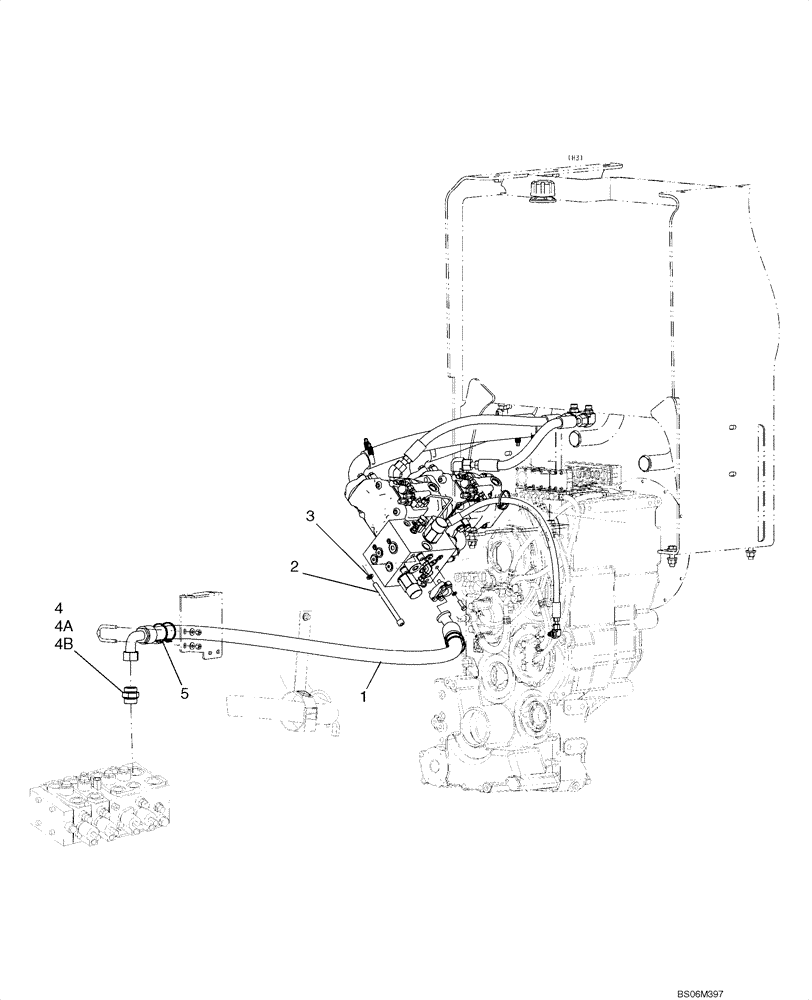

Запчасти Case 921E (08-05) - HYDRAULICS - COOLING FRAME TO PUMP/PRIORITY VALVE (08) - HYDRAULICS

1

87592668

HOSE ASSY.

1810mm ( 71 - 1/4 in ); Case Drain

1шт.

2

87592606

HEX SOC SCREW,M14 x 2 x 170mm, Cl 10.9

4шт.

3

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

4шт.

4

700-133

HYD CONNECTOR,1-11/16" - 12 Male ORFS x M42 x 2 Male ORB

Incl. Refs. 4A, 4B

1шт.

4a

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

Face Seal

1шт.

4b

637-64386

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

5

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

4шт.
