Запчасти Case 921E (08-04) - HYDRAULICS - FILTER, OIL (08) - HYDRAULICS

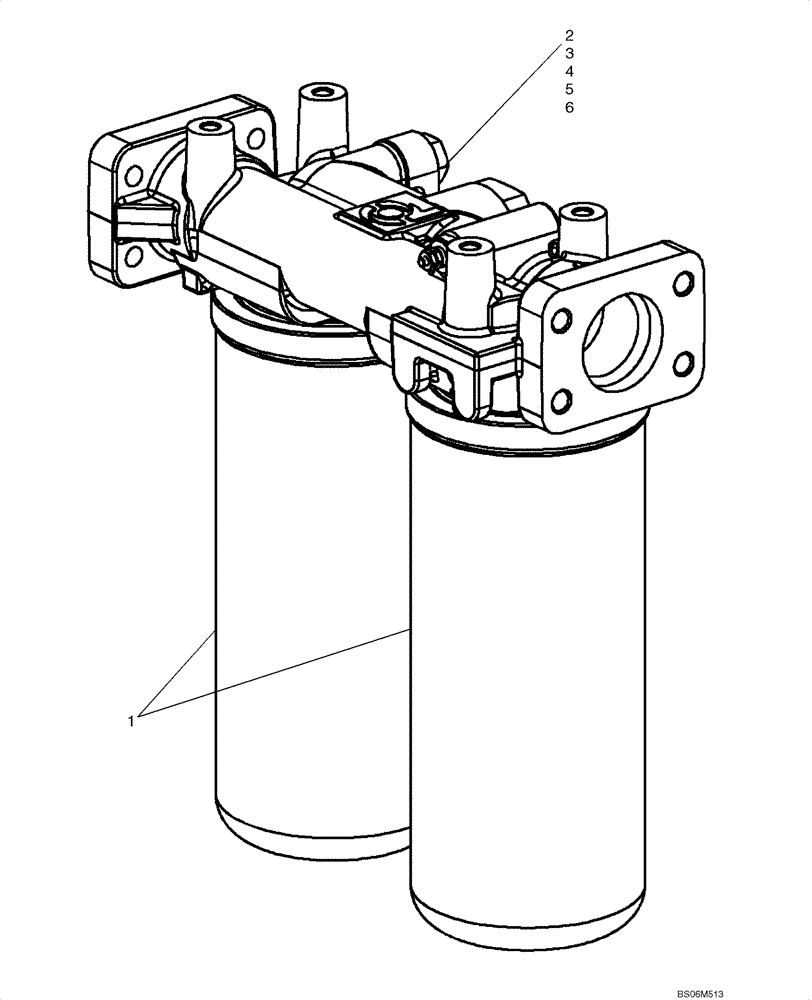

Схема запчастей Case 921E - (08-04) - HYDRAULICS - FILTER, OIL (08) - HYDRAULICS
2
3
6
4
1
5

Артикул

Название

Примечание

Количество

87384644

FILTER ASSY

Hydraulic Oil; Production Number Only: Order Component Parts

1шт.

1

87308933

HYDRAULIC OIL FILTER

2шт.

2

N6755

PRESSURE SWITCH

Incl. Refs. 3-6

1шт.

3

129-667

NUT,#10-32, LH

2шт.

4

493-21020

LOCK WASHER,Int Tooth, #10

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

6

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

Выбрано товаров: 7
