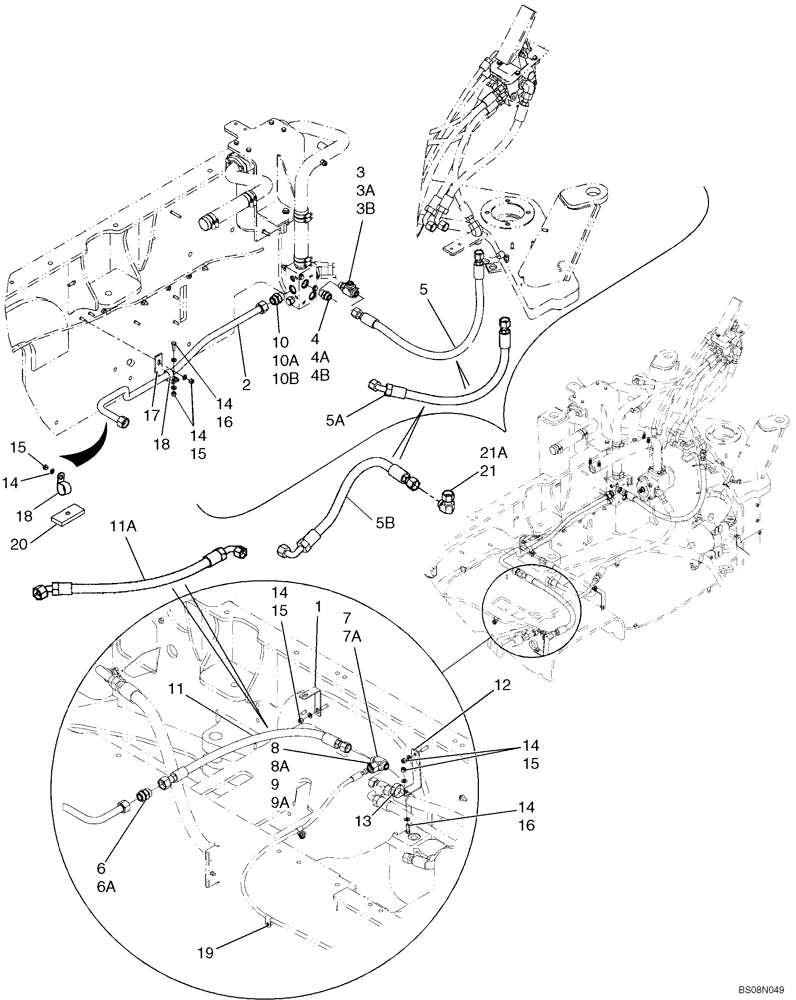

Запчасти Case 921E (08-03) - HYDRAULICS - RESERVOIR RETURN, NO AXLE COOLER (08) - HYDRAULICS

1

87592935

BRACKET

Tube Support, If Used

1шт.

2

87575582

HYD TUBE,1" OD

1шт.

3

700-428

TEE,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. Refs. 3A, 3B; If Used

1шт.

3a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

2шт.

3b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss

1шт.

4

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 4A, 4B; If used

1шт.

4a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

4b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss

1шт.

5

87592940

HOSE ASSY.

967 mm (38 in) Brake to Manifold; No Longer Available, Order 87475307 Hose, Ref. 5B

1шт.

5a

87546237

HOSE

765 mm (30 - 1/8 in); Brake to Manifold; No Longer Available, Order 87475307 Hose, Ref. 5B

1шт.

6

86705421

HYD CONNECTOR

CONNECTOR

1шт.

5b

87475307

HOSE ASSY.

668 mm (26 - 19/64 in);, Serial Range: Brake-Manifold

1шт.

6a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

2шт.

7

701-427

TEE,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS

Incl. Ref. 7A

1шт.

7a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

3шт.

8

201-172

REDUCER,9/16"-18 Male x 1 3/16"-12 Fem, ORFS

Incl. Ref. 8A

1шт.

8a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

9

703-904

TUBE NUT,1-3/16" - 12

Incl. Ref. 9A

1шт.

9a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

10

700-166

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. Refs. 10A, 10B

1шт.

10a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

10b

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss

1шт.

11

87592936

HOSE ASSY.

851mm (33 1/2 in) Bypass to Return; No Longer Available, Order Ref. 11A, 87534432

1шт.

11a

87534432

HOSE,19.05mm ID x 733mm L, SAE 100R17

733 mm (28 - 7/8 in)

1шт.

12

87592934

BRACKET

1шт.

13

515-23508

CLAMP,2", Insul, 3/8" Bolt

If Used

1шт.

13

515-25381

CLAMP,1 1/2", Insul, 1/2" Bolt

If Used

1шт.

14

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

7-9шт.

15

832-10410

NUT,M10 x 1.5, Cl 8

5-7шт.

16

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

17

87549768

BRACKET

Tube Mounting, Replaces 87549768

1шт.

18

515-25254

CLAMP,1", Insul, 1/2" Bolt

Replaces 515-24302 Clamp Used On Some Models

1-2шт.

19

515-25143

CLAMP,9/16", Insul, 1/2" Bolt

If Used

1шт.

20

87532055

SPACER

1шт.

21

701-342

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Female ORFS

Incl. Ref. 21A; Used With 87475307 Hose

1шт.

21a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.
