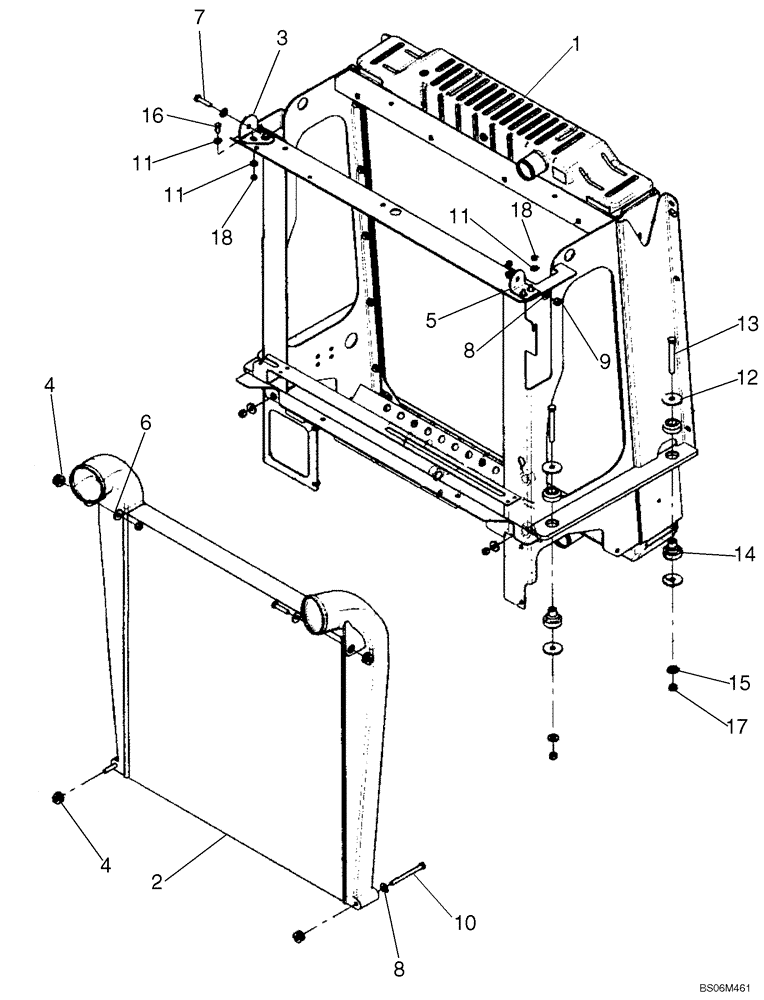

Запчасти Case 921E (02-03) - COOLER - CHARGE AIR (02) - ENGINE

REF

INSTRUCTION

See Figure 02-02 For Radiator Mounting, Figure 03-04 For Fuel Cooler Mounting, Figure 08-07 For Hydraulic Oil Cooler Mounting

1шт.

1

87358288

FRAME ASSY

Cooling

1шт.

2

87306420

AFTERCOOLER

Charge Air

1шт.

3

87571629

BRACKET

1шт.

4

434177A1

ISOLATOR

4шт.

5

361250A1

BRACKET

1шт.

6

496-41041

WASHER,13/32" x 1 1/8" x .134"

4шт.

7

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

2шт.

8

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

10

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

2шт.

11

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.

12

496-81018

WASHER,0.521" ID x 2" OD x 0.108 Thk, ZND

1/2 x 2 x 1/8

8шт.

13

827-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

4шт.

14

117844A1

MOUNTING PARTS

Replaces Mount 413153A1, Used on Some Models

4шт.

15

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

16

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

17

829-1412

NUT,M12, Cl 10.9

4шт.

18

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.
