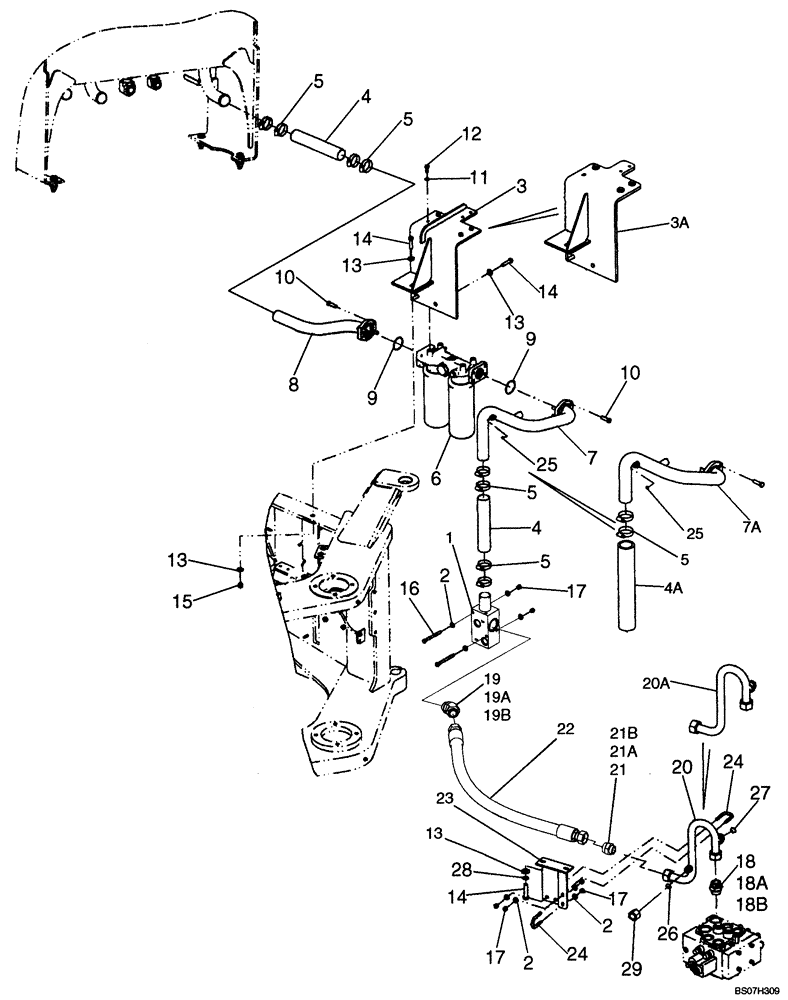

Запчасти Case 921E (08-02) - HYDRAULICS - RESERVOIR RETURN (08) - HYDRAULICS

1

87713892

MANIFOLD

Return; See Figure 08-37, Serial Range: -NAF210393

1шт.

1

84226321

MANIFOLD

Return; See Figure 08-37, Start Serial: NAF210394

1шт.

2

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

8шт.

3

87547718

BRACKET

Filter Mounting

1шт.

3a

87664604

BRACKET

Filter Mounting, If Used

1шт.

4

L130001

HOSE,69mm ID x 280mm L

Bypass, 280 mm (11 - 1/64 in)

1-2шт.

4a

87664602

HOSE,50.80 mm ID

Bypass, If Used

1шт.

5

214-3148

HOSE CLAMP,2-1/4" - 3-1/8", HD Worm

8шт.

6

87384644

FILTER ASSY

Hydraulic Oil; Production Number Only: See Figure 08-04

1шт.

7

87351700

TUBE,2" OD

Return, If Used; Used W/ Ref. 4, 280 mm (11 - 1/64 in) Hose

1шт.

7a

87664601

TUBE,2" OD

Return, If Used; Used W/ Ref. 4A, 400 mm (15 - 3/4 in) Hose

1шт.

8

L128151

TUBE,50.8 mm OD x 295, 307 mm L

Return

1шт.

9

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

2шт.

10

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

8шт.

11

892-11010

LOCK WASHER,M10

4шт.

12

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

12

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

If Used

4шт.

13

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

6шт.

14

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

5шт.

15

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

16

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

2шт.

17

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

18

700-133

HYD CONNECTOR,1-11/16" - 12 Male ORFS x M42 x 2 Male ORB

Incl 18A, 18B

1шт.

18a

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

Face Seal

1шт.

18b

637-64386

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

19

87564729

HYD CONNECTOR

Incl. 19A, 19B

1шт.

19a

238-6029

O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro

1шт.

19b

637-64446

O-RING,2.9mm Thk x 44.6mm ID, Cl 6, 90 Duro

O-RING

1шт.

20

87525955

HYD TUBE,1.25" OD

Return

1шт.

20a

87660168

HYD TUBE

Return, If Used

1шт.

21

87390086

UNION

ORFS STR 30mm x 38mm; Incl. 21A, 21B

1шт.

21a

238-6029

O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro

Face Seal

1шт.

21b

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

Face Seal

1шт.

22

87571625

HOSE ASSY.

Valve Return; 1344mm ( 53 in )

1шт.

23

87525299

BRACKET

Pressure And Return

1шт.

24

233381A1

U-BOLT,M10 x 1.5 x 73mm, Carbon Steel

BOLT "U"

2шт.

25

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

26

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal, If Used

1шт.

27

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

28

892-11012

LOCK WASHER,M12

2шт.

29

701-906

CAP,1" - 14

If Used

1шт.
