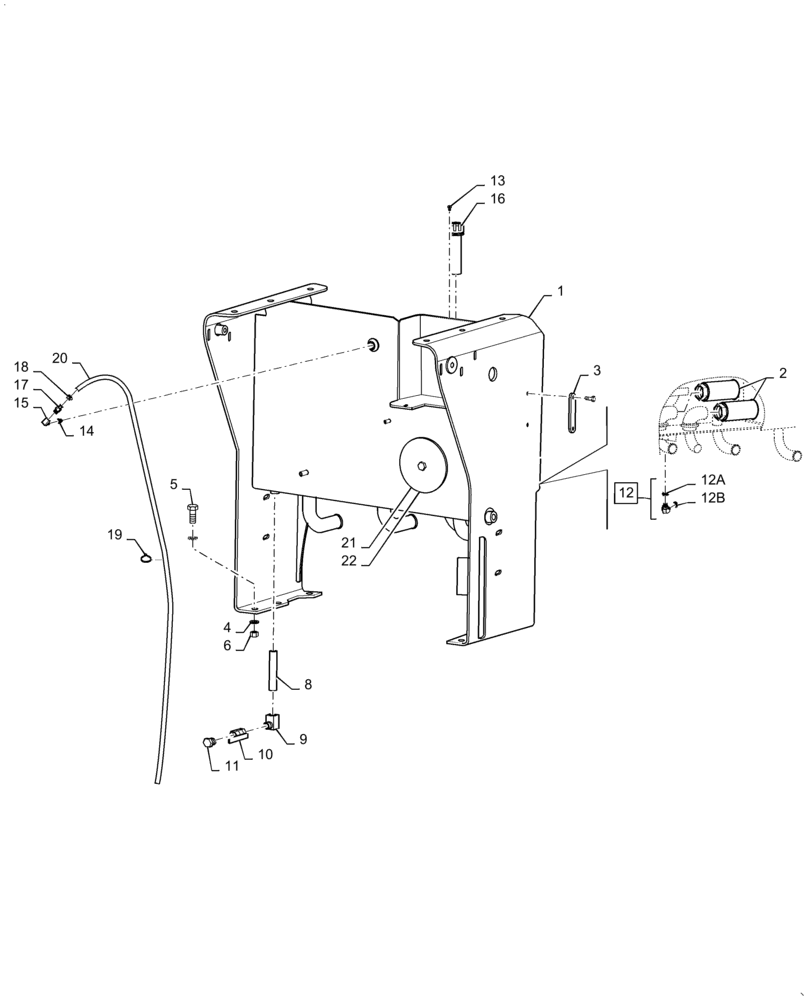

Запчасти Case 921E (08-01) - HYDRAULIC RESERVOIR - ASSEMBLY (08) - HYDRAULICS

1

87617395

TANK, HYDRAULIC OIL

Case Power Tan

1шт.

2

L128515

STRAINER ELEMENT

Hydraulic Tank

2шт.

3

86988366

SIGHTGLASS

Includes Hardware

1шт.

4

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

8шт.

5

827-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

4шт.

6

829-1416

NUT,M16, Cl 10

4шт.

8

221-1223

PIPE,Nipple, 3/4" NPT x 6"

1шт.

9

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

1шт.

10

L124327

DRAIN VALVE

1шт.

11

217-415

PLUG,Hex Hd, 3/4" - 14 NPT

1шт.

12

700-345

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 12A, 12B

1шт.

12a

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

12b

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

13

840-1512

SCREW,Pan, M5 x 12mm, Gr 4.8

6шт.

14

221-1092

REDUCER,Hex, 3/4" x 3/8" NPT

1шт.

15

86521965

ELBOW,90 Degree, 3/8"-18 Female x 3/8"-18 Male

1шт.

16

367149A1

STRAINER ASSY.

Hydraulic Tank

1шт.

17

8606006

VALVE, CHECK

Hydraulic Tank

1шт.

18

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

1шт.

19

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.

20

31-3082

HOSE,0.38" ID x 8.00"

2159mm ( 85 in. ) Breather Hose

1шт.

21

L128352

COVER

1шт.

22

238-5442

O-RING,0.275" Thk x 7.22" ID, -442, Cl 5, 75 Duro

1шт.
