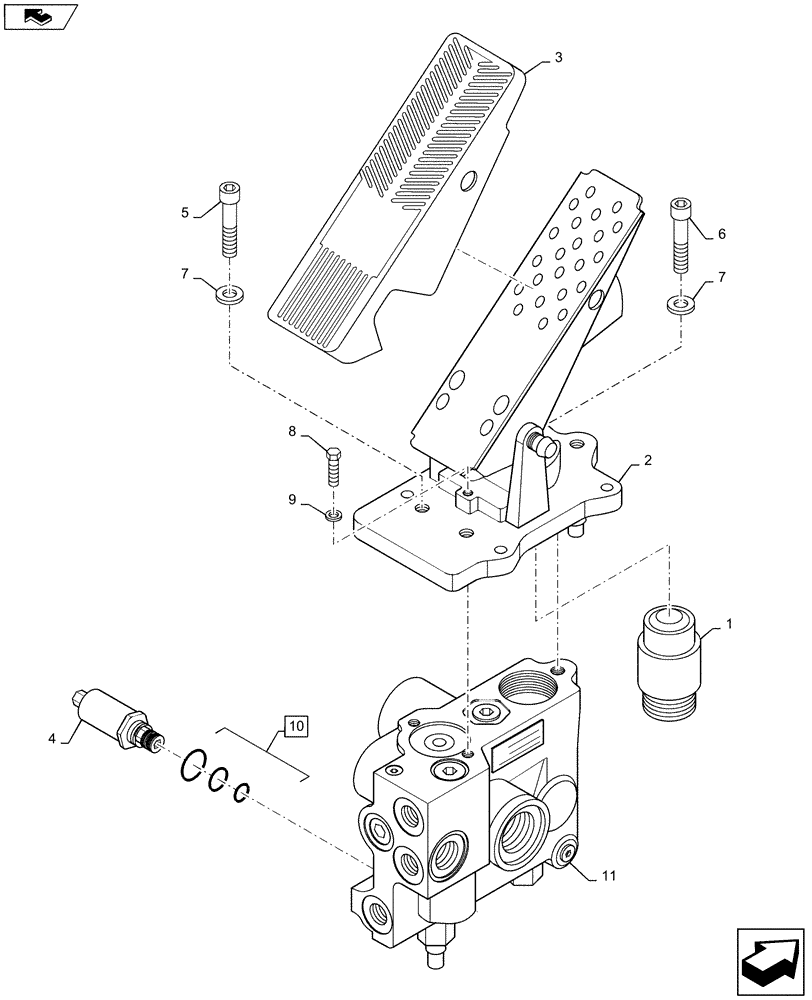

Запчасти Case 921E (07-10) - VALVE ASSY - BRAKE (07) - BRAKES

87360071

BRAKE ASSY.

Replaces 87360076, Incl. Refs. 1 - 11; For Brake Pressure Switch, See Figure 04-04

1шт.

1

87398113

ACTUATOR

1шт.

2

87398114

PEDAL

1шт.

3

383869A2

RUBBER PEDAL PAD

Rubber Pad

1шт.

4

8604506

SOLENOID VALVE

Solenoid, Parking Brake

1шт.

5

864-8025

HEX SOC SCREW,M8 x 25mm, Cl 8.8

2шт.

6

864-8030

HEX SOC SCREW,M8 x 30mm, Cl 8.8

1шт.

7

892-11008

LOCK WASHER,8mm ID

3шт.

8

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

1шт.

9

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

10

87398116

SEAL KIT

Incl. Refs. 10A - 10C

1шт.

10a

NSS

NOT SOLD SEPARAT

O-RING 8.9 x 1.5

1шт.

10b

NSS

NOT SOLD SEPARAT

O-RING 10.72 x 1.78

1шт.

10c

NSS

NOT SOLD SEPARAT

O-RING 15 x 2

1шт.

11

NSS

NOT SOLD SEPARAT

Valve Body, Need to Order Brake Assy 87360071

1шт.
