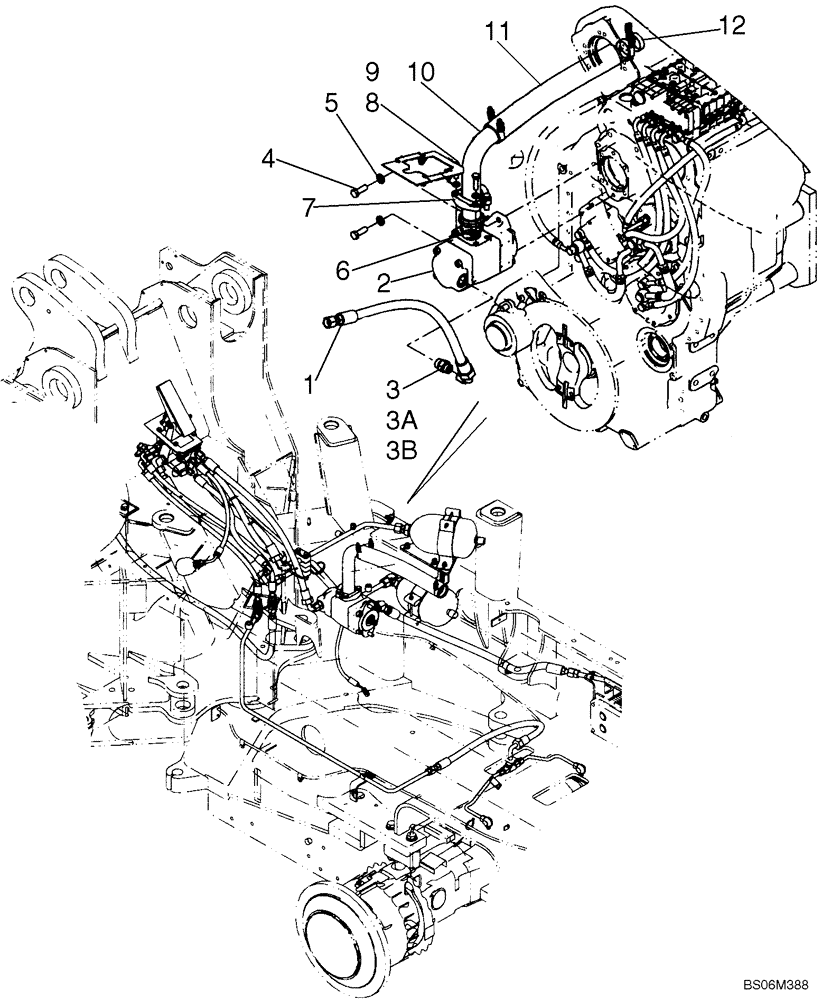

Запчасти Case 921E (07-08) - HYDRAULICS - BRAKE, MAIN - RESERVOIR - PUMP (07) - BRAKES

1

87560955

HOSE ASSY.

872mm ( 34-1/3 in ); Brake Valve Discharge

1шт.

2

87526207

PUMP,37.03 CC

Brake; See Figure 07-04, For O-Ring see 15

1шт.

2

87526207R

REMAN-HYD PUMP

921E TIER 3 (2/07-)

1шт.

87526207C

CORE-HYDRAULIC PUMP

Return Number

1шт.

3

86597760

HYD CONNECTOR,1"-14 ORFS x M2 x 2.0 ORB

Incl 3A, 3B

4шт.

3a

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

3b

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

4

627-14040

BOLT,Hex, M14 x 2 x 40mm, Cl 10.9, Full Thd

2шт.

5

896-11014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

2шт.

6

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

7

A14141

FLANGE

Split

2шт.

8

892-11012

LOCK WASHER,M12

4шт.

9

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

10

87528565

HYD TUBE,2" OD

Pump Suction

1шт.

11

87533975

HOSE ASSY.

490mm ( 19-1/4 in ); Brake Pump Supply

1шт.

12

254026A1

HOSE CLAMP,44.45mm - 66.67mm

Constant Torque

4шт.

13

190117A1

COUPLING

Diagnostic; Not Illustrated

1шт.

14

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Used for Diagnostic Coupling, Not Illustrated

1шт.

15

87582615

O-RING,3mm Thk x 104mm ID

1шт.
