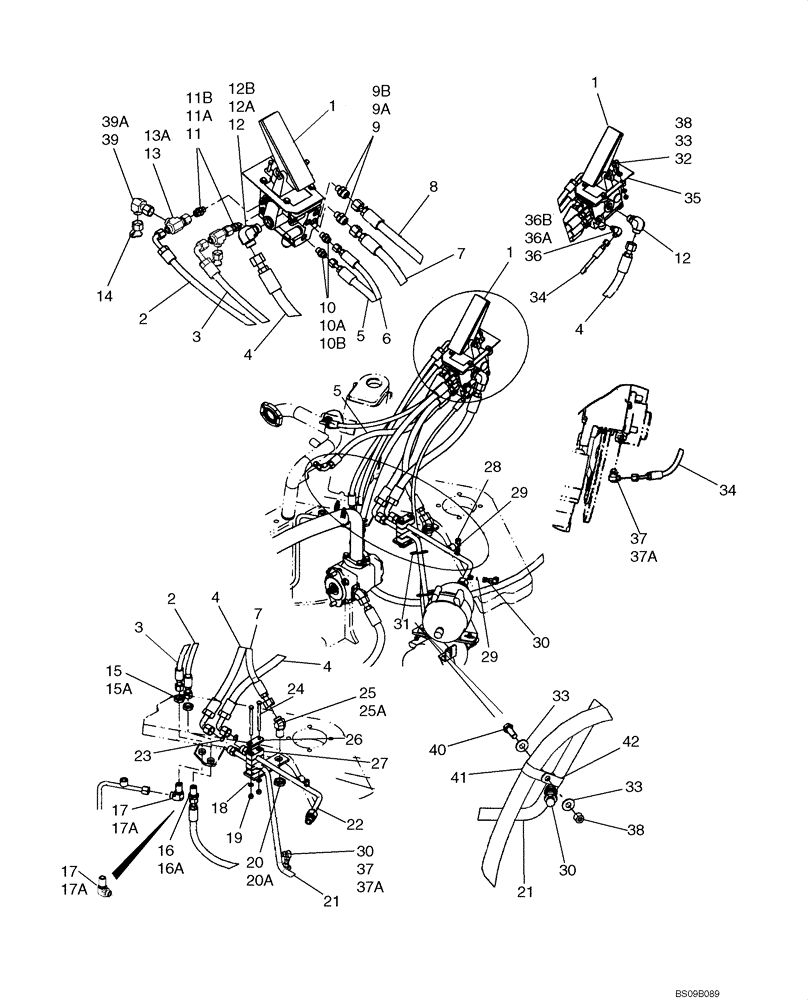

Запчасти Case 921E (07-07) - HYDRAULICS - BRAKE, MAIN - PUMP TO BRAKE VALVE (07) - BRAKES

1

87360071

BRAKE ASSY.

Replaces 87360076; See Figure 07-10; For Brake Pressure Switch, See Figure 04-04

1шт.

2

87533973

HOSE ASSY.

870mm (34 -1/4 in); Axle Brake

1шт.

3

87348982

HOSE ASSY.

894mm (34 - 1/8 in); Axle Brake

1шт.

4

87533972

HOSE ASSY.

683mm (27 in); Accumulator

2шт.

5

87533974

HYDRAULIC HOSE,660, 33 mm L

660 mm (26 in); Tank - Filter Return Tube

1шт.

6

87348977

HOSE ASSY.

601 mm (24 in); Parking Brake Accumulator

1шт.

7

87534150

HOSE ASSY.

624mm (24-1/2 in); Brake Pump Discharge

1шт.

8

87348964

HOSE ASSY.

918 mm (36 in); Brake Valve Discharge

1шт.

9

700-115

HYD CONNECTOR,1" - 14 Male ORFS x M18 x 1.5 Male ORB

Incl. 9A, 9B

2шт.

9a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

9b

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

10

700-157

HYD CONNECTOR,11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl. 10A, 10B

3шт.

10a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

10b

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

Boss

1шт.

11

700-169

HYD CONNECTOR,13/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl. 11A, 11B

1шт.

11a

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

11b

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Boss

1шт.

12

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 12A,12B

2шт.

12a

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss

1шт.

12b

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

13

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl. 13A

2шт.

13a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

3шт.

14

190316A1

COUPLING

Diagnostic

2шт.

15

701-919

BHD LOCK NUT,1" - 14

Incl. 15A

2шт.

15a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

16

701-123

UNION,1" - 14 Male ORFS x 1" - 14 Male ORFS

Incl. 16A; If Used

1шт.

16a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

17

701-346

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Male ORFS

Incl. 17A

1-2шт.

17a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

2шт.

18

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

19

832-10410

NUT,M10 x 1.5, Cl 8

7шт.

20

701-1249

BHD LOCK NUT,1-3/16" - 12

Incl. 20A

1шт.

20a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

21

87533970

HYD TUBE,.75" OD

Front Brake Accumulator; Replaces 87350459

1шт.

22

87350457

TUBE,0.75" OD

Rear Brake Accumulator

1шт.

23

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

3шт.

24

827-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 10.9

2шт.

25

87302137

ELBOW,45 Degree, 1 3/16"-12, ORFS, Blkhd

Incl 25A

1шт.

25a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

26

367658A1

PLATE

Clamp Cover

3шт.

27

379374A1

BLOCK

Block Tube Mounting

2шт.

28

701-917

CAP,Hex, 9/16" - 18 Female ORFS

1шт.

29

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

2шт.

30

190117A1

COUPLING

Diagnostic

2шт.

31

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.

32

627-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

Replaces 627-8030 M8 x 30 Bolt Used On Some Models

4шт.

33

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8-10шт.

34

87348979

HOSE ASSY.

1460 mm (57-1/2 in.) Parking Brake

1шт.

35

87607227

PLATE

Brake Valve

1шт.

36

700-368

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl.36A, 36B

1шт.

36a

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

Boss

1шт.

36b

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

37

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

2шт.

37a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

38

832-10408

NUT,M8 x 1.25, Cl 8.8

4-5шт.

39

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

1шт.

39a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

40

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

41

515-22254

CLAMP,1", Insul, 5/16" Bolt

1шт.

42

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

1шт.

43

REF

INSTRUCTION

Front Axle Brake Hose, See Figure 07-05

1шт.
