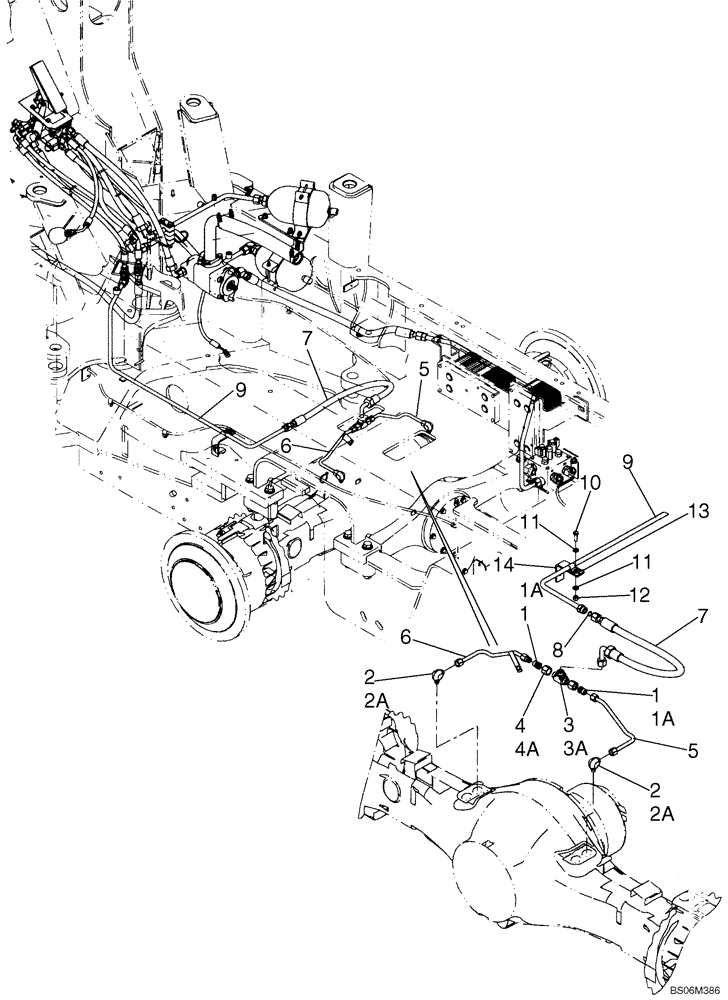

Запчасти Case 921E (07-06) - HYDRAULICS - BRAKE, MAIN - REAR AXLE (07) - BRAKES

1

201-146

REDUCER,13/16"-16 Male x 1"-14 Fem, ORFS

Incl. Ref. 1A

2шт.

1a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

2

201-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl Ref 2A

2шт.

2a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

3

201-415

TEE,1"-14 ORFS

Incl. Ref. 3A

1шт.

3a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

4

203-903

TUBE NUT,1"-14 ORFS

Incl. Ref. 4A

2шт.

4a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

5

344664A2

BRAKE LINE

Right Rear

1шт.

6

344666A2

TUBE

Left Rear

1шт.

7

87534438

HOSE ASSY.

906mm (35-1/2 in); Rear Axle Brake

1шт.

8

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

9

87532047

HYD TUBE,.625" OD

Rear Axle Brake; Replaces 87350461

1шт.

10

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

11

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

3шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

10шт.

13

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

1шт.

14

87515958

BRACKET

Tube Mounting; Replaces L129205, 87549768 Brackets Used On Some Models

1шт.
